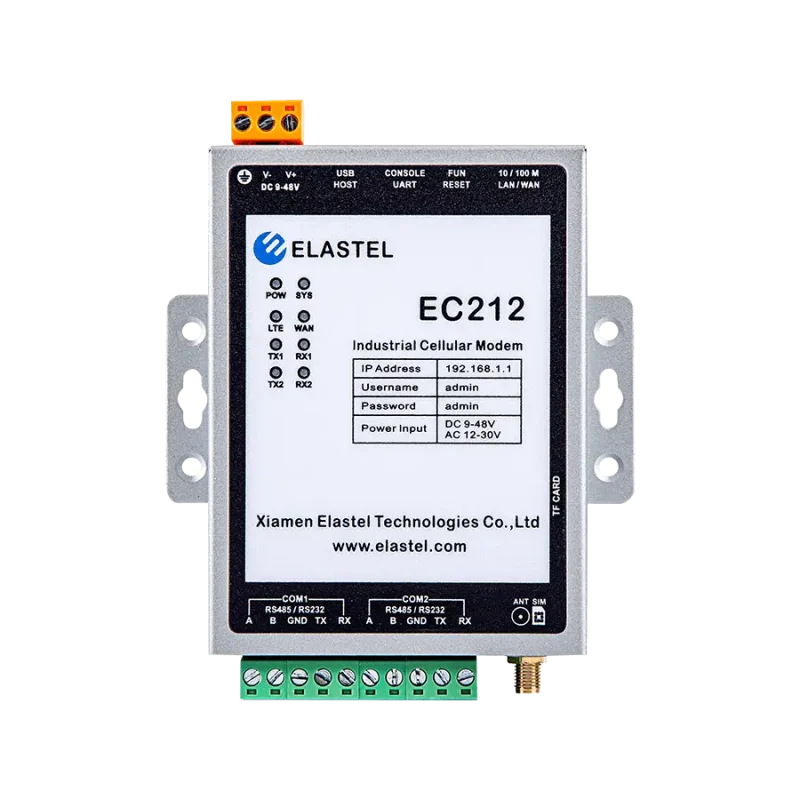

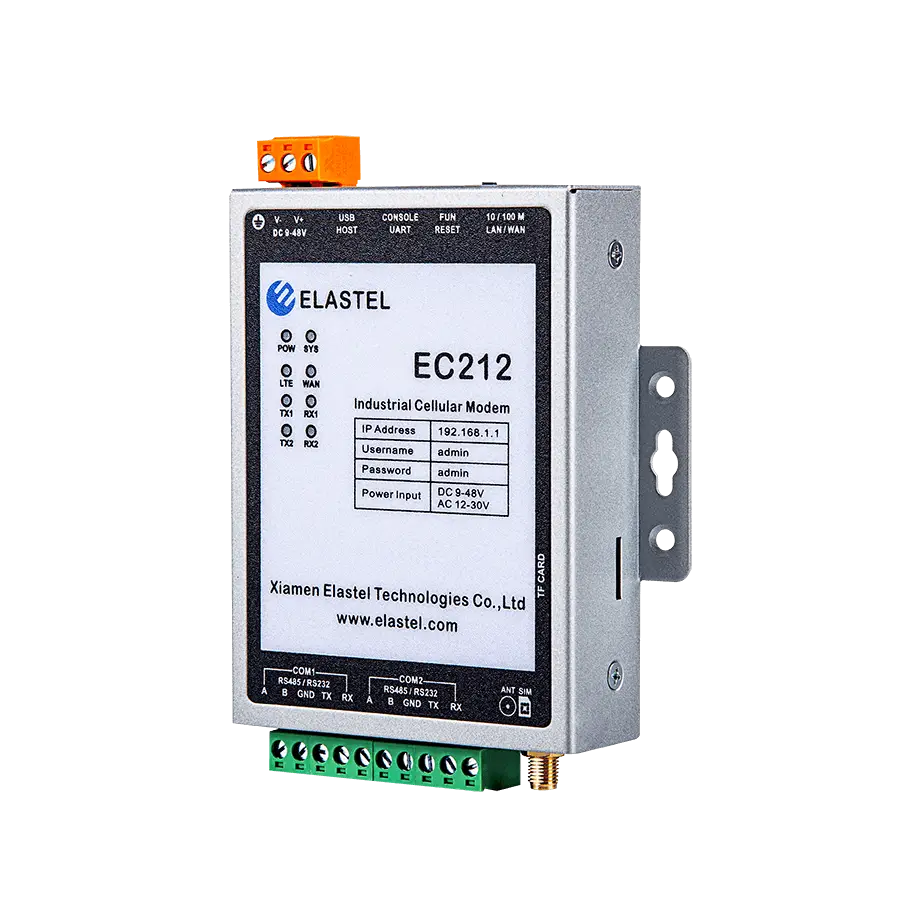

EC212 Industrial DTU
$99.00 – $145.00The Elastel EC212 is a compact industrial DTU modem for Edge Connectivity data acquisition, Modbus Gateway, and communication applications.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
- ★ 1x auto-sensing 10/100 Mbps Ethernet for LAN/WAN configurable
- ★ Built-in mPCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Enhanced surge protection & Hardware Watchdog for reliablity
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let EC212 perfect for Serial & Ethernet to Cloud over cellular network applications, or Serial-to-Ethernet gateway, etc.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
-
EG324 IoT Gateway
$189.00 – $235.00The Elastel EG324 is an Arm-Based IoT Gateway provide a high-performance computing platform for embedded data acquisition and communication applications.
- ★ Armv7 Quad-core Cortex-A9 1.4 GHz CPU, 512MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let users efficiently adapt the EG324 to a variety of complex communications solutions.
-
EG324 Lite IoT Gateway
$155.00 – $199.00The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.
- ★ ARM Dual-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Linux OS with prebuilt Web-based data acquisition programs
These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.
-
EW8811 Wi-Fi Module
$30.00The Elastel EW8811 is a mini-PCIe type Wi-Fi Module powered by REALTEK RTL8811CU, support IEEE802.11a/b/g/n/ac protocols with 2.4GHz and 5.8GHz bands.
- ★ Compatible with all Elastel product models
- ★ 2.4GHz and 5.8GHz dual bands support
- ★ Mini-PCIe type interface easy installation and wide compatibility
- ★ -30°C to +85°C Operating Temperature.
- ★ Compatible with all Elastel product models
