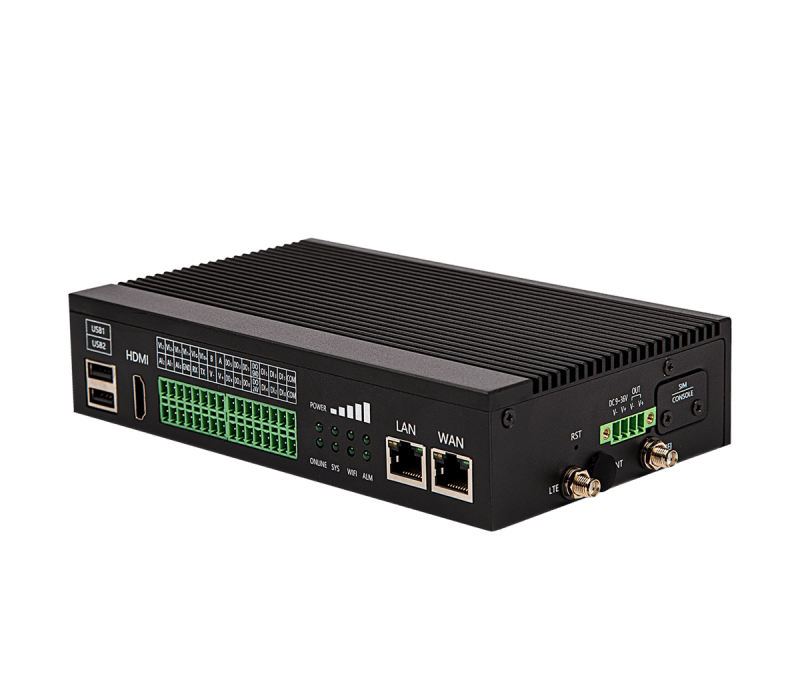

March 24, 2022EG500 Edge Computing Gateway
$375.00 – $540.00
Elastel EG500 is an industrial Edge computing Gateway designed for IoT applications. Powered by Raspberry Pi CM4. Expanded I/O ports for industrial needs, Diverse Connectivities options, and ture IPC-grade enclosure…, These allows it perfect for IoT Gateway, data acquisition, Industrial Controller, Edge Computing…. Applications.
- ★ 2xGbE , 4G LTE/3G/2G/NB-IoT, LoRaWAN/WiFi HaLow optional.
- ★ Industrial-grade DI/DO/AI/CAN-bus (optional)/RS232/RS485.
- ★ Hardware Watchdog, Network Failover, -25 ~ 70°C working temperature.
Description
EG500 features powerful edge computing capabilities, equipped with RS232, RS-485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high-performance IoT deployments. significantly reduces the data flow between field sites and data center.
With 4G/LTE, CAT6/CAT4/3G/2G/LTE CAT M1(eMTC) and NB-IoT cellular network, Dual-band 2.4GHz/5GHz Wi-Fi, dual Gigabit Ethernet, and Elastic Linux based OS, it's easy to deploy and interoperate with IoT platform like Microsoft Azure, AWS, ThingsBoard, etc.

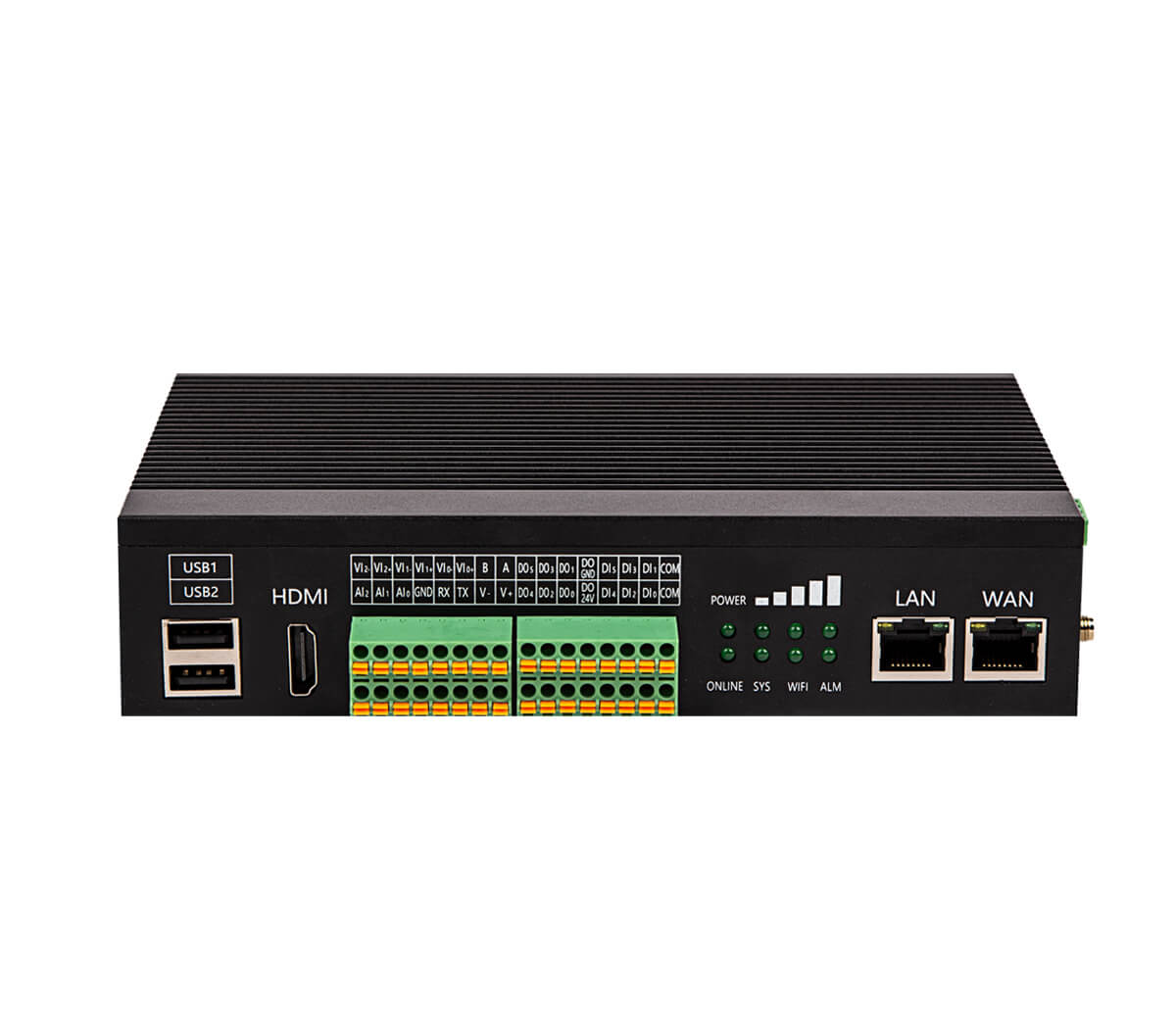

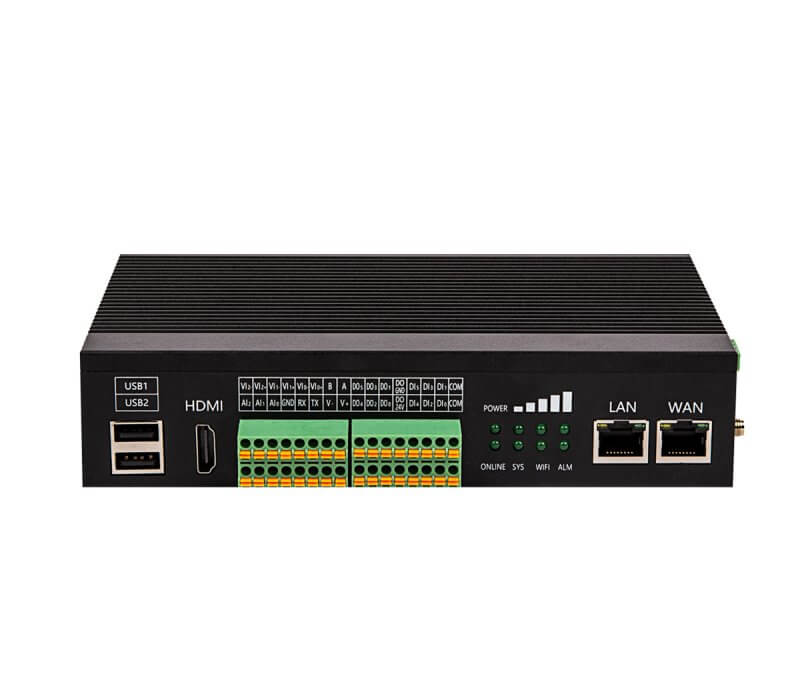

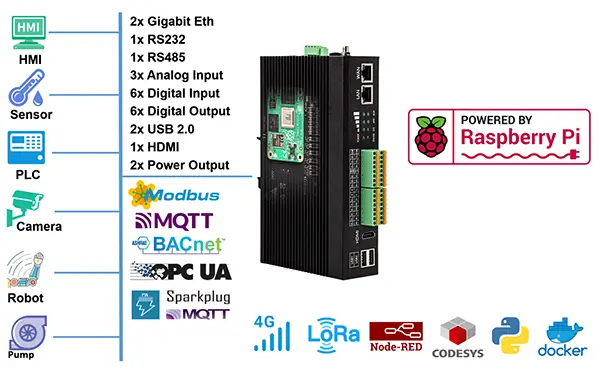

Numerous interfaces support edge devices
- Isolated Serial Port 1x RS485, and 1x RS232
- Industrial-grade isolated 6x DI, 6x DO and 3x ADC
- 2x 10/100/1000Mbps Gigabit Ethernet Port
- 1x Up to 4kp60 supported HDMI output
- 2x High-Speed USB 2.0 Ports
-
Compatible with multiple industrial protocols including:
Modbus TCP, Modbus RTU, OPC UA, EtherNET/IP, ISO on TCP, Mitsubishi MC serials...

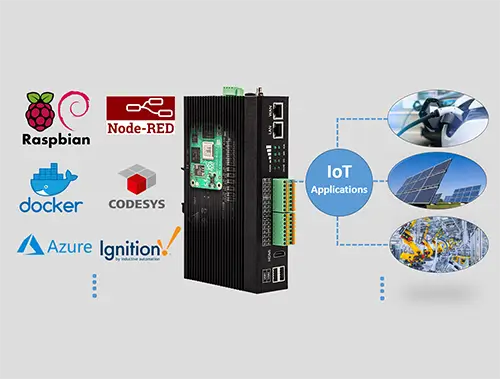

Powerful Computing Operation Platform
Powered by Raspberry Pi CM4 which featured high-performance edge computing capabilities, it's easy to build up your IoT projects and PoC applications.
- ARM Cortex-A72 Quad-core processor 1.5GHz, 1GB RAM + 8GB eMMC (diverse RAM and Storage optional)
- Raspbian/OpenWRT Based Linux OS, Docker, Node-RED, Python... available with SDK provided by Elastel
- Pre-compiled software bundled for common application like data acquisition, Modbus collection, MQTT...
- Easy interoperate with IoT Ecosystem like Microsoft AZURE, Amazon AWS, AliCloud, ThingsBoard platforms, etc.
Industrial-grade Design for Reliability & Security
From computing module, communication module to each electronic components, EG500 adopts strict industrial grade standards. Solid and durable housing and SIM lock secure it at your remote edge field .
- Fanless design achieved wide Operating Temperature from -25°C to +70°C
- 35mm DIN-Rail and wall mount Supported
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
- Built-in RTC with supercap
- SIM card slot and Console port lock set the data secuirty
Applications
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EC500 could be applied in many kinds of scenarios.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG500 can easily operate as a typical PLC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG500 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EG500 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Specification
CPU | RPI CM4, Quad-core A72 (ARM v8)@ 1.5 GHz |
Memory | 1GB/2GB/4GB/8GB options LPDDR4 |
FLASH | 8GB/16GB/32GB options eMMC |
Ethernet | 2x Gigabit Ethernet, (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular | 1x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules |
Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
LoRaWAN | 1x mPCIe slot for LoRaWAN modules, Compatible with LoRaWAN modules powered by Semtech SX1301/1302 |
WiFi HaLow (802.11ah WiFi) |
Reserved mount points for SX-NEWAH from SilexTechnology |
GPS | Cellular Module built-in supported (Optional) |
Serial Ports | Isolated RS-232 x 1, RS-485 x 1; |
I/O | 6-channel digital input DI (0..24VDC, Configurable Status/Count mode) |
3-channel Analog input AI (0-10VDC, 4-20mA, 18-bit resolution) |
|
6-channel digital/pulse output DO with overvoltage protection (0..60V, Max. power effciency: 500 mA) |
|
USB | USB 2.0 x 2 for peripherals, |
USB-C x 1 for debug Console | |
HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |

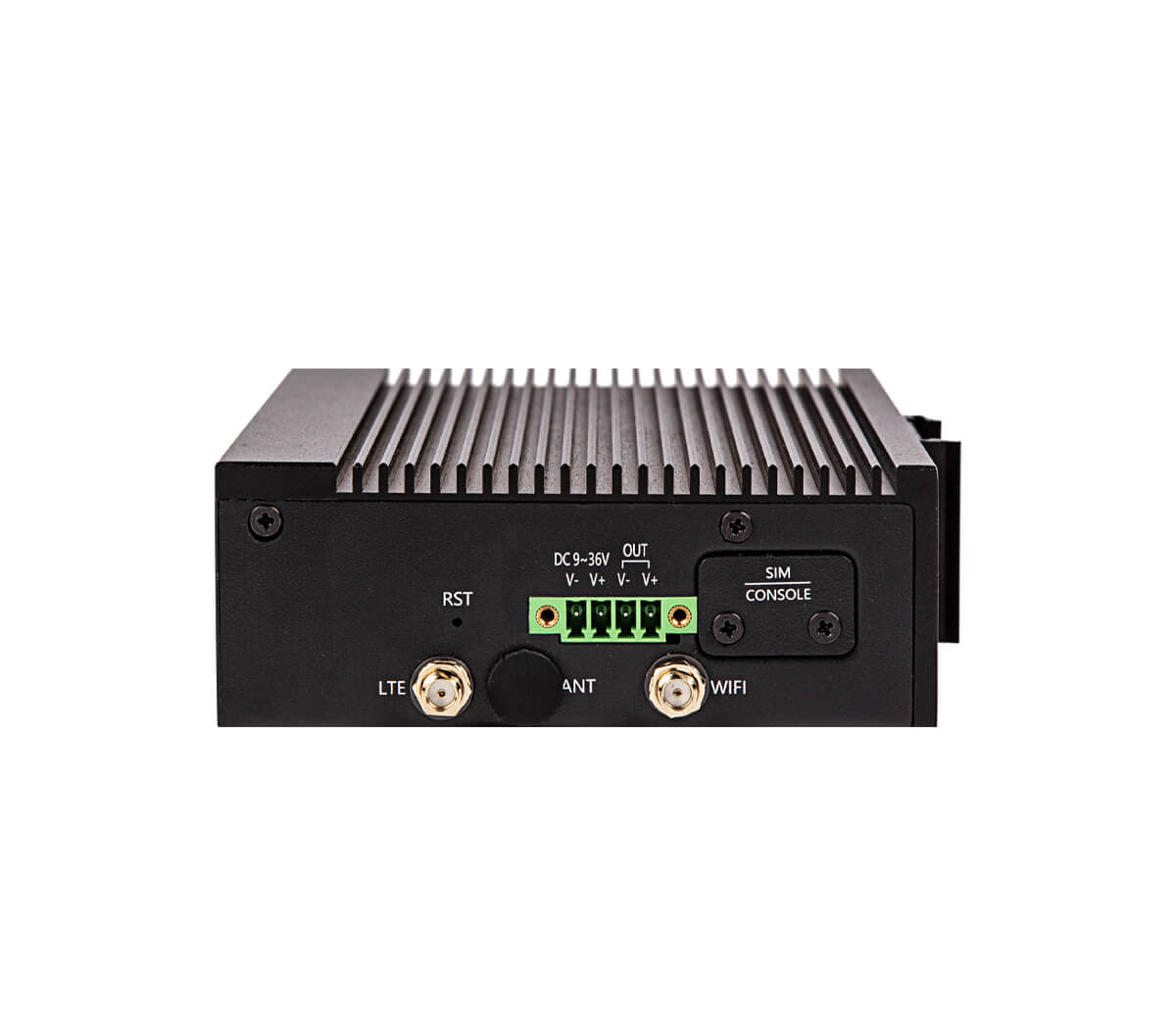

Power Supply | Wide Range Voltages 9~36V DC/1A, recommended 24V/1.5A |
Enclosure | Full Aluminum, IP30, DIN-rail |
Dimensions (mm) | 187mm x 112mm x 42mm |
Weight | 780g (1.72 lb) |
Operating Temperature | -25 ~ 70°C (industrial grade) |
Watchdog | Standalone Hardware Watchdog |
OS | ElastOS (OpenWRT based), Raspbian with WebUI |
Application Features | Data Acquisition, Modbus RTU/TCP, Siemense S7, Mitsubishi FX PLC protocls… |
Uninterrupted Network manage,VPN, TCP/UDP, MQTT, HTTP, OPC UA, BACnet… | |
Support Secondary Development, Codesys, Ignition Edge, Python, Node-RED, Docker ... | |
Check the Specifications Tab for more details.
Specifications
Hardware platform | |
CPU | Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
Memory | 2GB (2GB/4GB/8GB optional) LPDDR4 |
FLASH | 8GB (16GB/32GB optional) eMMC |
Network & Interfaces | |
Ethernet | 2x Gigabit Ethernet, (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular | 4G LTE, 3G, 2G, NB-IoT, CAT-M1 |
Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
LoRaWAN | Supported (Optional) |
WiFi HaLow (802.11ah WiFi) | Supported (Optional) |
GPS | Cellular Module built-in supported (Optional) |
SIM | 1.8 V/3 V; drawer-type Nano card holder × 1 |
15KV ESD Protection | |
Antenna | 4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1, LoRa/WiFi Halow: inside SMAx1 |
Industrial Serial Port | RS-232 x 1,RS-485 x 1; |
RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND; ESD protection: 15KV | |
I/O | 6-channel digital input DI (0..24VDC, Configurable Status/Count mode) |
3-channel Analog input AI (0-10V DC, 4-20mA, 18-bit resolution) |
|
6-channel digital/pulse output DO (0..60V, Max. power effciency: 500 mA) |
|
USB | USB 2.0 x 2 for peripherals, |
USB-C x 1 for debug Console | |
HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
Reset Button | Supported |
Power | |
Power supply | Wide Range Voltages 9~36V DC/1A, recommended 24V/1.5A |
Power Terminal | Unpluggable industrial terminal connection |
Power consumption | Less than 10 W (system) |
Power Output | 2-channel power supply for slave devices, same value as Power input (24V) |
Mechanical features | |
Protection | IP30 |
Housing | Aluminum Heatsink |
Cooling | Fanless cooling |
Dimensions (cm) | 187mm x 112mm x 42mm |
Installation | DIN-rail, wall mounting |
Ambient temperature and humidity | |
Storage temperature | -30 ~ 75°C |
Ambient humidity | 5 ~ 95% (non-condensing) |
Operating temperature | -25 ~ 70°C (industrial grade) |
EMC index | |
Static electricity | level 3 |
Radiated electric field | level 3 |
Surge | level 3 |
Others | |
LED Indicator | 1-POWER, 1-WiFi, 1-SYSTEM, 1-ALARM,1-ONLINE, 3-Signal Strength |
Watchdog | Standalone Hardware Watchdog |
Warranty | Standard 12 Months |
Software Features | |
OS | ElastOS (OpenWRT based) with Data Acquisition programs
Optimized Raspbian with WebUI |
Configuration | WebUI, Local CLI, Remote configuration |
Upgrade operate | Local USB upgrade and Remote upgrade |
Timed startup and shutdown | Supported |
Application features | Data Acquisition, Modbus RTU, VPN, Router, Firewall, Media Player… |
Python, Node-RED, Docker…, | |
Support Secondary Development with SDK | |
Network Features | WWAN and WAN Failover, Load Balance, |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, | |
DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, | |
Modbus RTU/TCP, Siemens S7, OPC UA, BACnet, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH… | |
1 review for EG500 Edge Computing Gateway
Related products
-
EC212 Industrial DTU
Rated 5.00 out of 5$99.00 – $145.00The Elastel EC212 is a compact industrial DTU modem for Edge Connectivity data acquisition, Modbus Gateway, and communication applications.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
- ★ 1x auto-sensing 10/100 Mbps Ethernet for LAN/WAN configurable
- ★ Built-in mPCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Enhanced surge protection & Hardware Watchdog for reliablity
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let EC212 perfect for Serial & Ethernet to Cloud over cellular network applications, or Serial-to-Ethernet gateway, etc.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
-
EG324 IoT Gateway
Rated 5.00 out of 5$189.00 – $235.00The Elastel EG324 is an Arm-Based IoT Gateway provide a high-performance computing platform for embedded data acquisition and communication applications.
- ★ Armv7 Quad-core Cortex-A9 1.4 GHz CPU, 512MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let users efficiently adapt the EG324 to a variety of complex communications solutions.
-

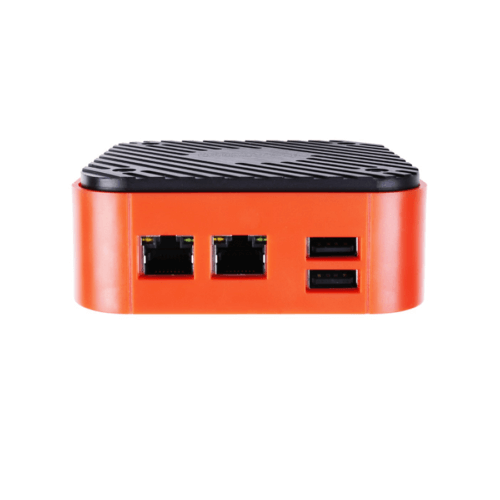

ElastBox400 Industrial Computer
