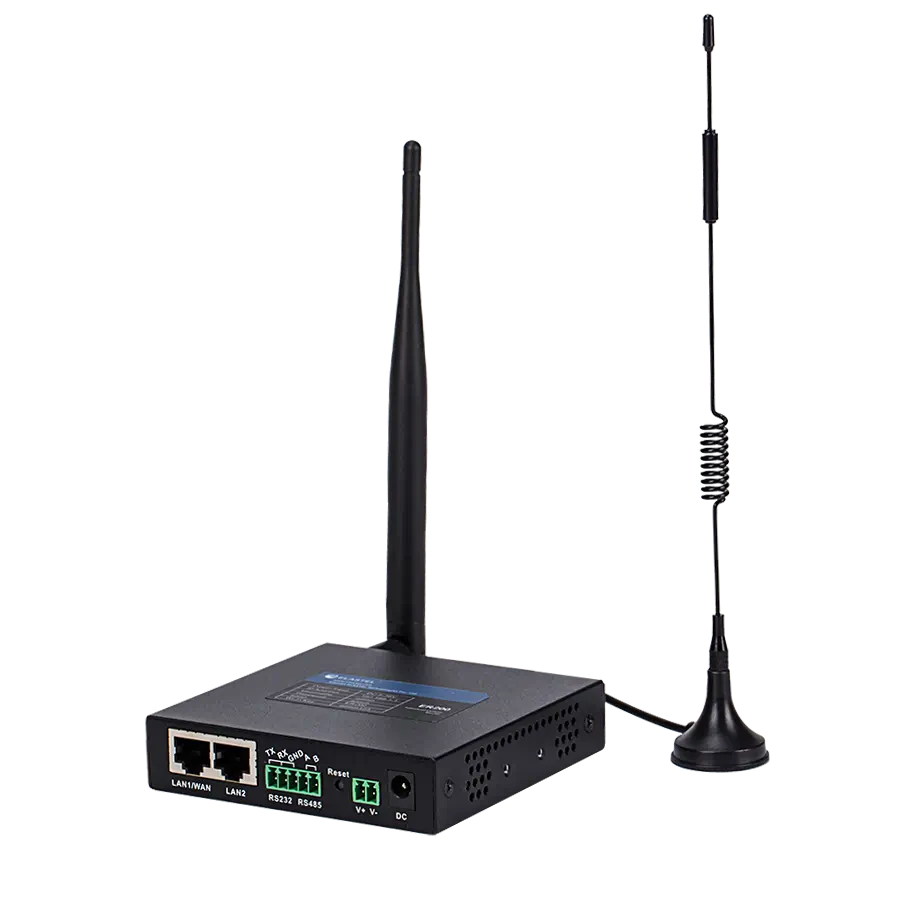

May 23, 2023ER200 Compact Industrial Cellular Router
$149.00 – $159.00
The Elastel Elink series industrial cellular router ER200, is an IoT cellular router that integrates 4G LTE, Wi-Fi, and dual 10/100 Mbps Ethernet ports for IoT Edge Connectivity and communication applications.
- ★ Global 4G LTE/ 3G/ 2G, CAT4, CAT M1, NB-IoT networks compatible
- ★ 2x 10/100 Mbps ETH ports (1-WAN 1-LAN, or 2-LAN), Wi-Fi integrated
- ★ Compact size with DIN-Rail and panel mounting Supported
- ★ Plug-and-play, easy to use webUI for configuration and program
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
Description
The ER200 is a compact industrial cellular router for Edge Connectivity applications. It support high speed 4G LTE CAT4, 2x 10/100 Mbps Ethernet wired network, and Wi-Fi connections. Besides, it comes with 1 x RS485 and 1x RS232 serial ports, these versatile capabilities makes ER200 prefect for your edge Ethernet devices connectivity over cellular network. Also for a serial-to-IP data acquisition solution.
With full industrial-grade design, built-in hardware watchdog, multi-layer software failover, backup and auto recovery mechanism. And OpenWRT based Easy-to-use web portal configurable firmware , guarantee this ruggedized cellular router reliably working on variety applications in industrial environment.

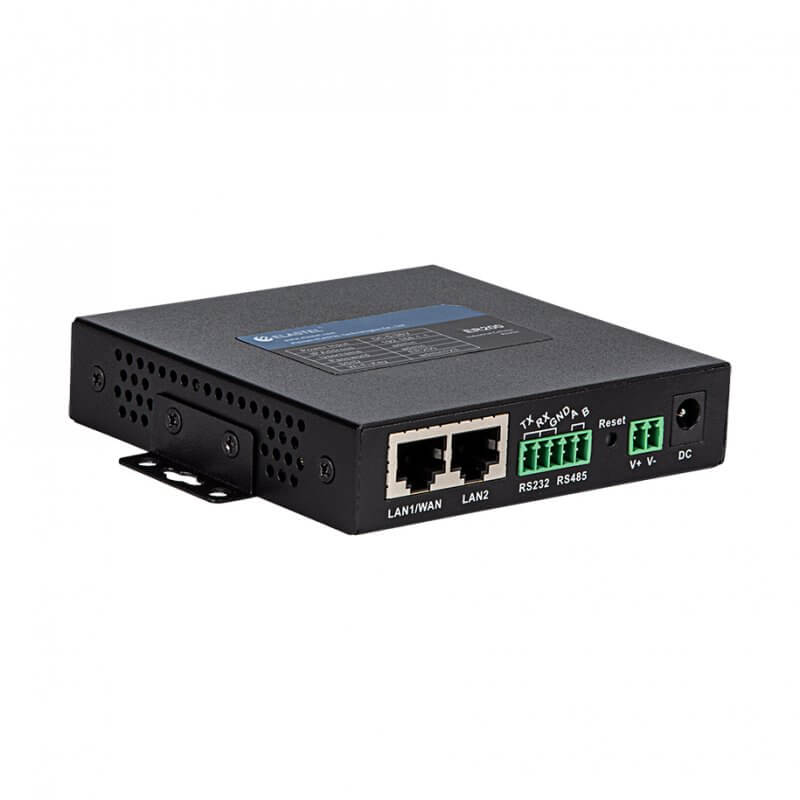

Compact and Rugged Housing Design
Benefit from ER200 compact design, the narrow installation space will no longer be a roadblock. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.
Fully Industrial Design
Fan-less cooling technology, IP30 solid metal shell, EMC level 2, strong resistance to vibration and shock, dual power input options, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.
Serial-to-IP
Leverage its 1xRS485 + 1xRS232 serial ports, 2x ETH ports, easy-to-use SCADA programs, and flexible configurable OpenWRT-based firmware, ER200 is also suitable for your lite data acquisition solutions.
Applications
With compact industrial housing, the reliable connectivities , and flexible Linux OS, ER200 could be in any kinds of your applications like below our success customers cases.
Traffic management solution
Wireless connectivity for atm
Cellular backup for stores
Specifications
Hardware Platform | |
CPU | MediaTek@ 580MHz |
DRAM | 64MB DDR2 |
Storage | 16MB |
Wireless | |
Cellular module Slots | 1 x mPCIe slot for Cellular module |
SIM Slot | 1 x Mini SIM (25mm*15mm); 15KV ESD protection |
Band Options | NA: 4G LTE FDD@ B2/B4/B12/B13; 3G WCDMA@ B2/B4/B5; Carrier Approval: Verizon, AT&T EMEA/APAC: 4G LTE FDD@ B1/B3/B7/B8/B20/B28A; 4G LTE TDD@ B38/B40/B41; 3G WCDMA@ B1/B8; 2G GSM@ B3/B8; ANZ/LATAM: 4G LTE FDD@ B1/B2/B3/B4/B5/B7/B8/B28; 4G LTE TDD@ B40; 3G WCDMA@ B1/B2/B5/B8; 2G GSM@ B2/B3/B5/B8;Other options please contact Elastel representative. |
Wi-Fi | IEEE 802.11b/g/n, 150Mbps |
Wi-Fi mode | Support AP and Client modes |
Antenna Connector | 1x 4G Cellular SMA, 1x Wi-Fi SMA |
Interfaces | |

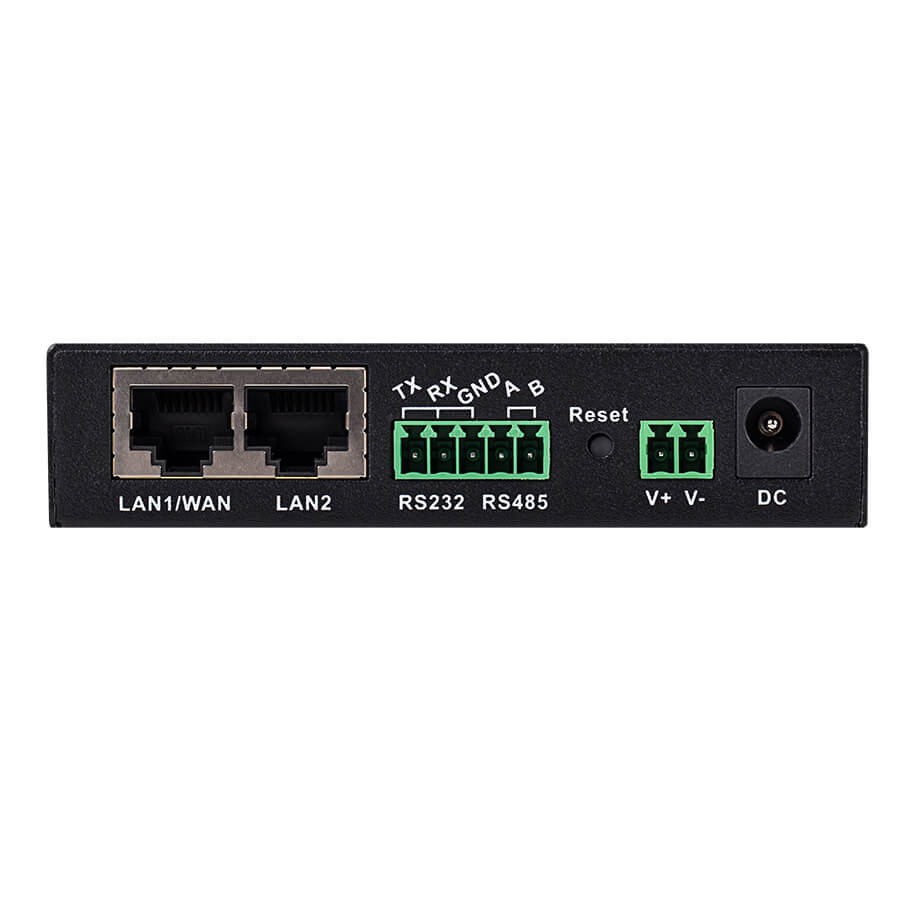

Ethernet Ports | 2 x 10/100 Mbps Ethernet for LAN/WAN configurable; 1.5KV network isolation transformer protection; |
Serial Ports | 1-RS232, 1-RS485; 5-PIN industrial terminal block; 15kV ESD protection; |
Reset Button | 1x Pinhole reset button |
Power Parameters | |
Power Supply | DC5-36V, over-current protection, anti-reverse connection; 2 PIN terminal block and Plug-in connector; |
Power Consumption | Working Mode: 250~310mA@12V DC; Standby Mode: 150~230mA@12V DC; |
Indicators | |

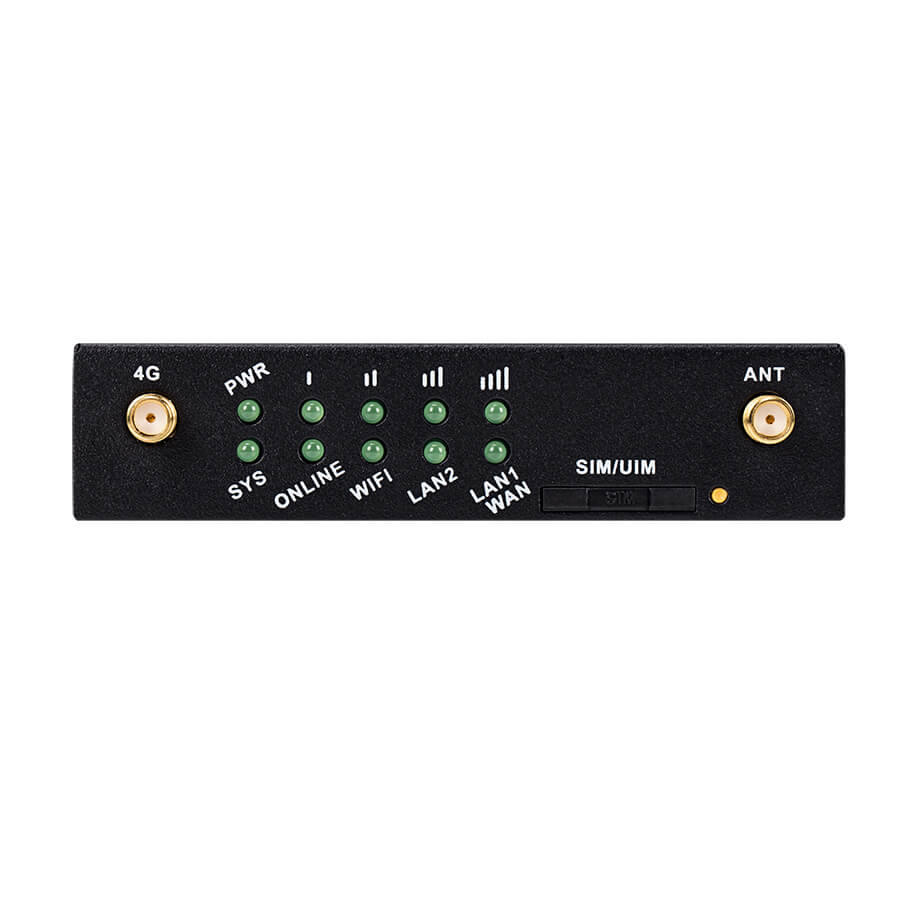

LED Indicators | 10 LEDs ( Power, System, SIM Online, WiFi, LAN1/WAN, LAN2, Signal Strength) |
Physical Characteristics | |
Dimensions | 100 × 100 x 23 mm (L×W×H) |
Housing | IP30 Metal |
Installation | DIN-rail mounting Panell mounting |
Weight | 300g |
Environmental Limits | |
Ambient Humidity | 5 to 95% (non-condensing) |
Operating Temperature | -35 to 75°C (-31 to 167°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Reliability | |
Alert Tools | External RTC with Backup button battery |
Automatic Reboot Trigger | External WDT (watchdog timer) |
Package Contents | |
Device | 1 x ER200 device with Terminal Block preinstalled |
Antenna | 1x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi),
1x RP-SMA WIFI Antenna |
Installation Kit | Panel mount kits (DIN-rail mount kits optional) |
Power Adapter | DC 12V/1A (optional) |
Software Features | |
OS | ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
Configuration management | WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote export |
Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH… |
VPN | PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
Serial to IP | Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA |
Reliability & Security | WWAN and WAN Failover, multi-layer detection and auto recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding |
Secondary Development | OpenWrt based OS with SDK support |
Warranty | |
Warranty Period | 1 year |
Related products
-

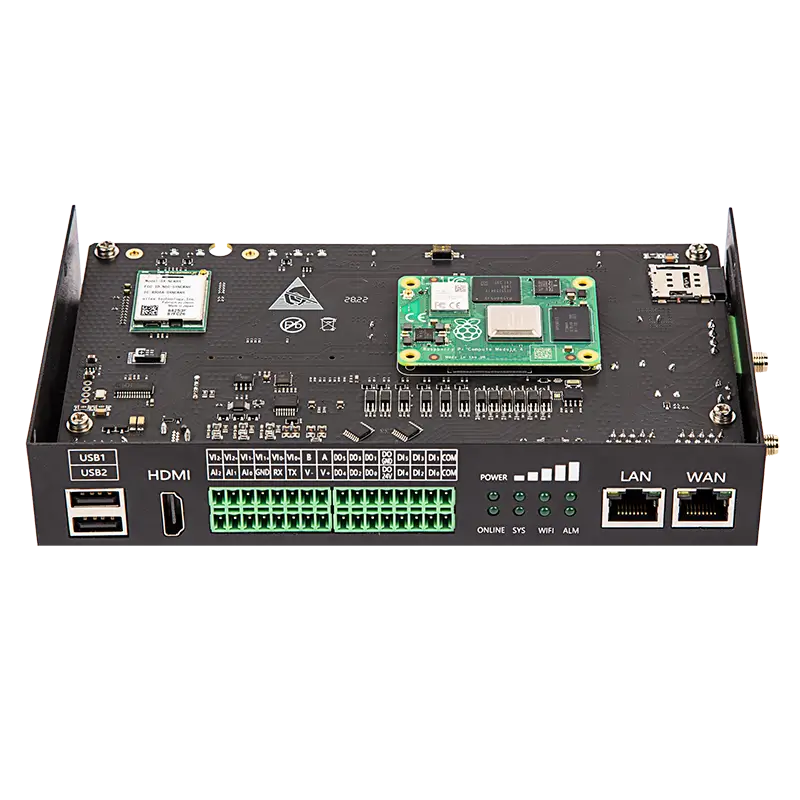

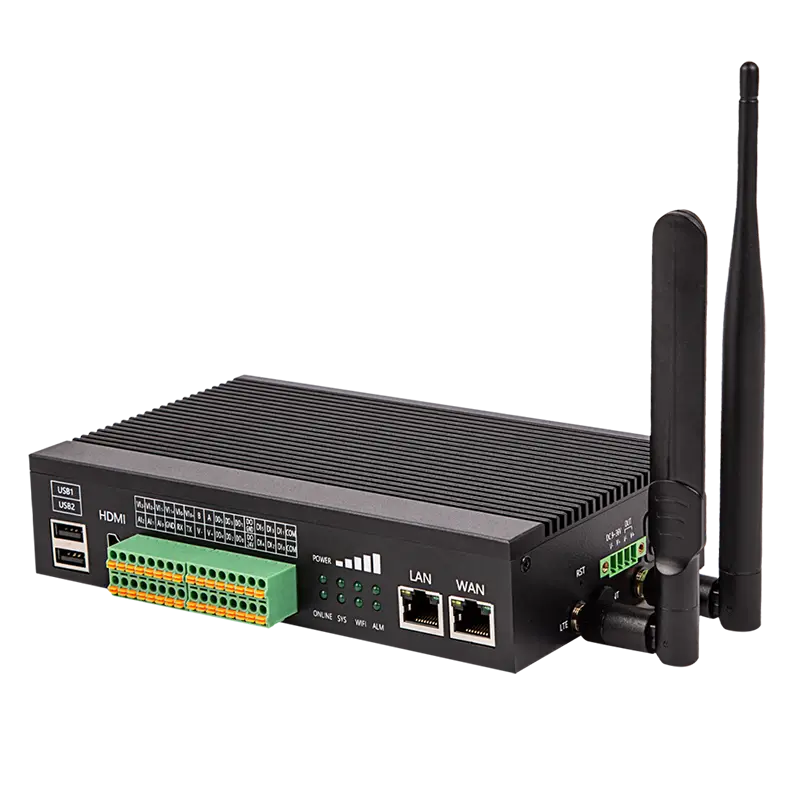

EG500 WiFi HaLow Gateway
$438.00 – $548.00Elastel EG500 IoT Gateway WiFi HaLow Edition is an industrial IoT Gateway designed for IoT applications those specially using 802.11ah WiFi HaLow technology. Leverage SX-NEWAH module from SilexTechnology, the first industrial IEEE 802.11ah Wi-Fi module, EG500 is able to as a WiFi HaLow Gateway/Router for your IoT projects.
- ★ Powered by high-performance Raspberry Pi CM4.
- ★ Leverage SX-NEWAH module that operates in the Sub 1GHz Long range (up to 1 km) LPWAN technology.
- ★ GbE Wired, 4G LTE, 2.4G/5G WiFi for WAN connectivities.
- ★ Industrial-grade carrier board with RS232/RS485/DI/DO and enclosure.
Select options This product has multiple variants. The options may be chosen on the product page -

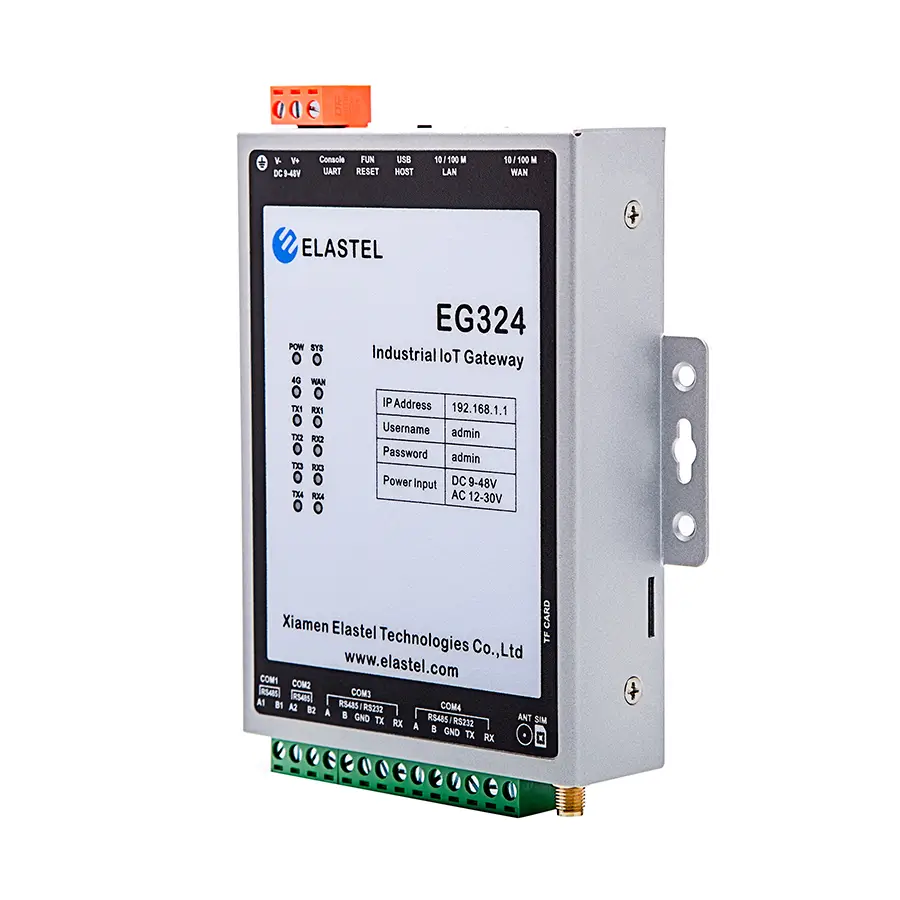

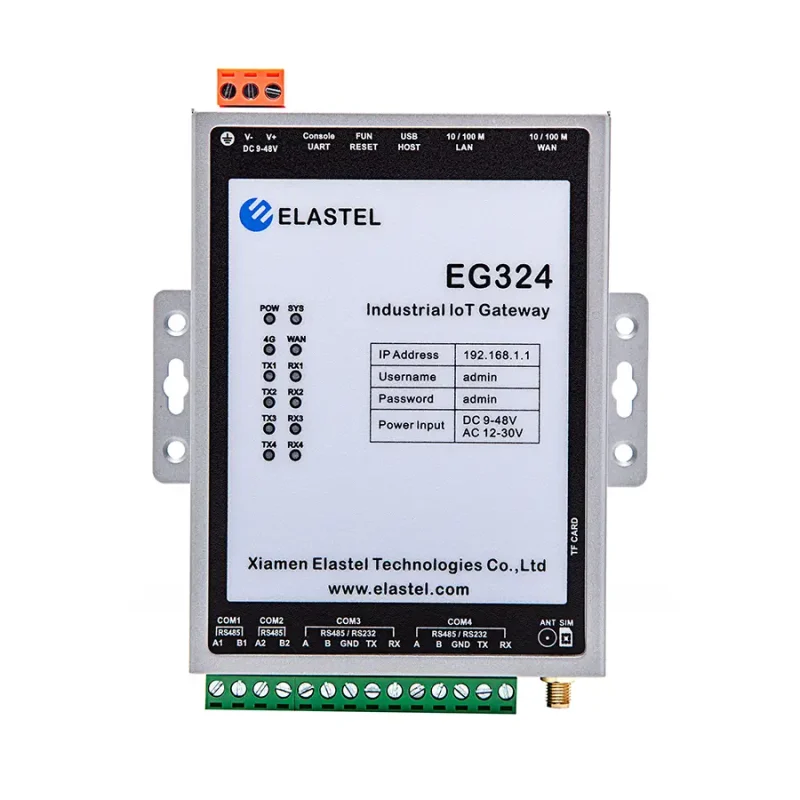

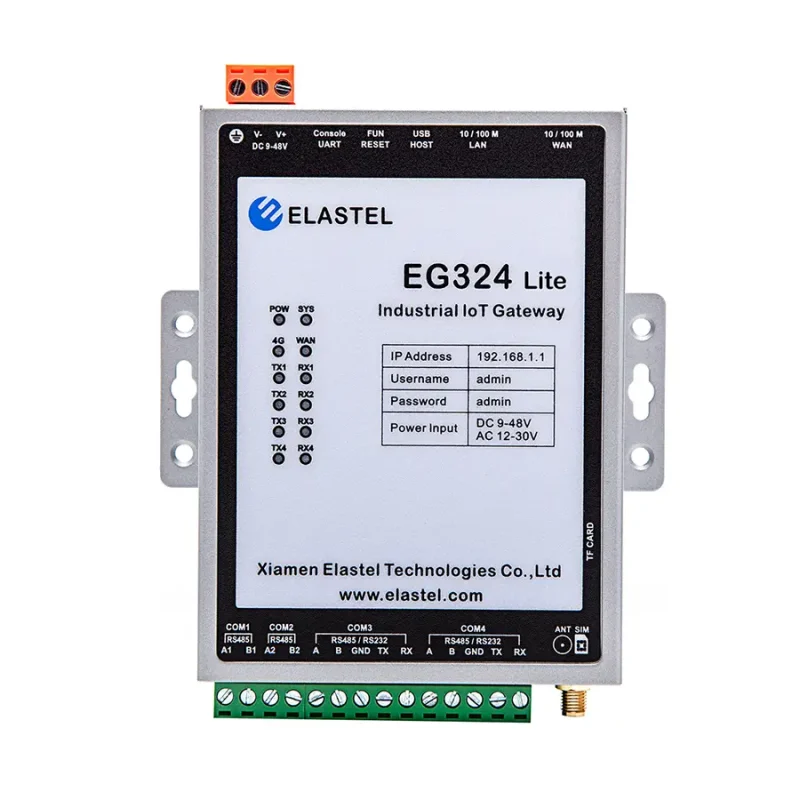

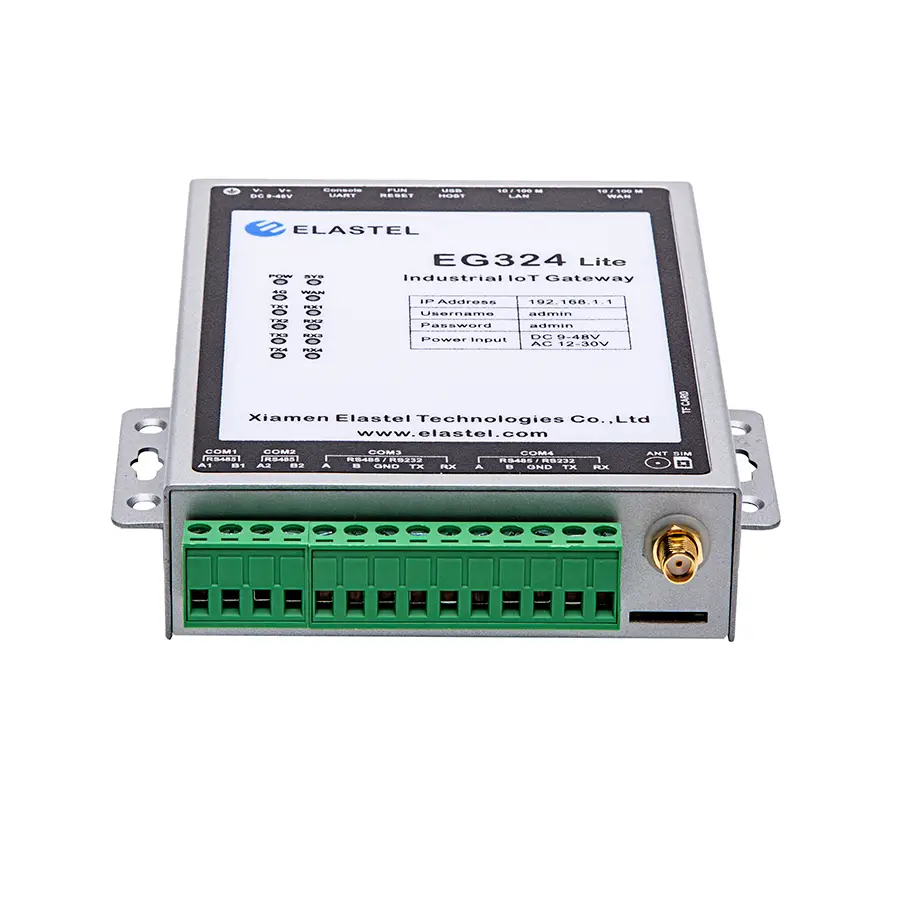

EG324 Lite IoT Gateway
