Raspberry Pi Industrial IoT Ready
To bring a Raspberry Pi to industrial applications, it’s not just put a Raspberry Pi in an industrial case, but much more. Benefit from Raspberry Pi industrial-grade Compute Module, now an industrial raspberry pi be used in industrial environments become possibility.
ELASTEL talented engineers have designed our industry-focused carrier boards to integrate the Raspberry Pi CM4, which provides the core functionality of the Raspberry Pi 4, and allows to create expanded I/O connectivity options to serve specific industry needs.
More than that, leverage our proven passive cooling technology, we designed a whole aluminum enclosure to provide truly IPC-grade solution, not just for structural rigidity, but also as big heatsink dissipating heat from internal components.
The result is the products with the capabilities, connectivity and reliability that today's IIoT, Industry 4.0 and edge computing projects need. From a compact IoT gateway or edge computing, to a highly customizable industrial controller, the Elastel proven RPI-based Series is the industrial Raspberry Pi you can rely on.
Since these years, Elastel EG410, EG500 IoT Gateways and ElastBox400 industrial computer has been applied and supporting thousands of IoT projects for our partners .
Products Overview
| Model | EG410 IoT Gateway | EG500 Edge Computing Gateway | ElastBox400 Industrial Computer |
| CPU | Broadcom BCM2711 Cortex-A72 @ 4x1.5GHz | ||
| RAM | 2GB (1 / 2 / 4 / 8 GB optional) LPDDR4-3200 SDRAM | ||
| Flash Memory | 8GB ( 8 / 16 / 32 GB optional) eMMC | ||
| Cellular Network | Global 4G LTE / 3G / 2G, NB-IoT, CAT-M1 | ||
| Ethernet Port | 1x 10/100/1000Mbps | 2x 10/100/1000Mbps | 2x 10/100/1000Mbps |
| 802.11 b/g/n/ac Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 | ||
| WiFi HaLow (802.11ah WiFi) | x | √ (EG500 WiFi HaLow Gateway) | x |
| LoRa | √ (Optional) | √ (Optional) | x |
| Serial Ports | 1x RS232, 1x RS485 | x | |
| Digital Input (0..24VDC, Configurable pull up / down) | 2x DI | 6x DI | x |
| Digital Output (0..60V, Max. power effciency: 500 mA) | 2x DO | 6x DO | x |
| Analog Input (4~20mA or 0..10VDC, 18-bit resolution) | x | 3x ADC | x |
| USB | 2x USB2.0 | ||
| HDMI (Up to 4kp60 video & audio output) | 1x HDMI 2.0 | 2x HDMI 2.0 | |
| Console Port | √ (1x USB-C) | √ (1x USB-C for Power supply and Console) | |
| Additional Interfaces | 1 x M.2 socket with 2280 NVME SSD | x | 1 x M.2 socket with 2280 NVME SSD 40 pin standard Raspberry PI HAT |
| LED Indicator | 1-power, 1-system | 1-POWER, 1-WiFi, 1-SYSTEM, 1-ALARM,1-ONLINE, 3-Signal Strength | 1-power, 1-system |
| Power Supply | Wide Range Voltages 9~36V DC, recommended 24V/1.5A | 5V/3A power supply via USB-C port | |
| Operating System | Optimized Raspbian/BalenaOS/OpenWRT | Optimized Raspbian Linux 5.X | |
| Common Sotfware Features | Node-Red, Python, Docker, MQTT, WireGuard, Modbus RTU/TCP, Siemense S7, LogicLab PLC, UGS(Universal Gcode Sender), Codesys(PROFIBUS, PROFINET, EtherCAT, CANopen, BACnet)... |
||
| Data Sheet | Download | Download | Download |
Industrial-grade Design for IIoT
From each components, PCB design, to strict production test, All Elastel products are prepared to industry.
- Powered by Raspberry Pi industrial-grade Compute Module 4, with high-performance Cortex-A72 Quad-core processor 1.5GHz, 2GB RAM + 8GB eMMC storage. (diverse RAM and Storage optional)
- From core modules to each electronic components adopt strict industrial grade standards to Meet harsh environmental conditions of industrial fields.
- Vast aluminium shell heatsink fanless design and optimization achieved the Operating Temperature from -25°C to +70°C
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
- Rich Industrial common Interfaces, like RS232, RS485, DI, DO, AI (ADC), USB...
Highly-reliable and Diverse Networks
Multiple networks connectivity from industrial field devices to cloud service, with built-in multi-layer link detection and failover load-balance mechanism ensures the highly reliably and continuously connected.
- Worldwide carrier 4G/LTE, 3G, NB-IoT cellular network
- 10/100/1000Mbps Gigabit Ethernet, seamless failover or load-balance between cellular and wired network.
- Dual-band 2.4GHz/5GHz Wi-Fi
- LoRa, Zigbee Compatible via mini-PCIe
- 802.11ah WiFi Halow module reserved (only EG500)
Powerful and Configurable OS
Benefit from Raspberry pi fantastic open source software and flourishing ecosystem, it's easy to build up your specific applications programs with SDK provided by Elastel.
- Optimized Raspbian/OpenWRT Linux OS, with Docker, Node-RED, Python... available
- Out-of-the-box features for common applications like data acquisition, Modbus, siemens S7 data collection , MQTT...
- Highly compatible open source software, secondary program in your favourite language
- Easy interoperate with IoT platform service like Microsoft Azure, AWS, Google cloud, and ThingsBoard, etc.
Applications
With the Raspberry Pi CM4 high-performance computing capability, strict industrial-grade design, and flexible software program support, Elastel industrial raspberry pi series products could be applied in most kinds of scenarios. Like,

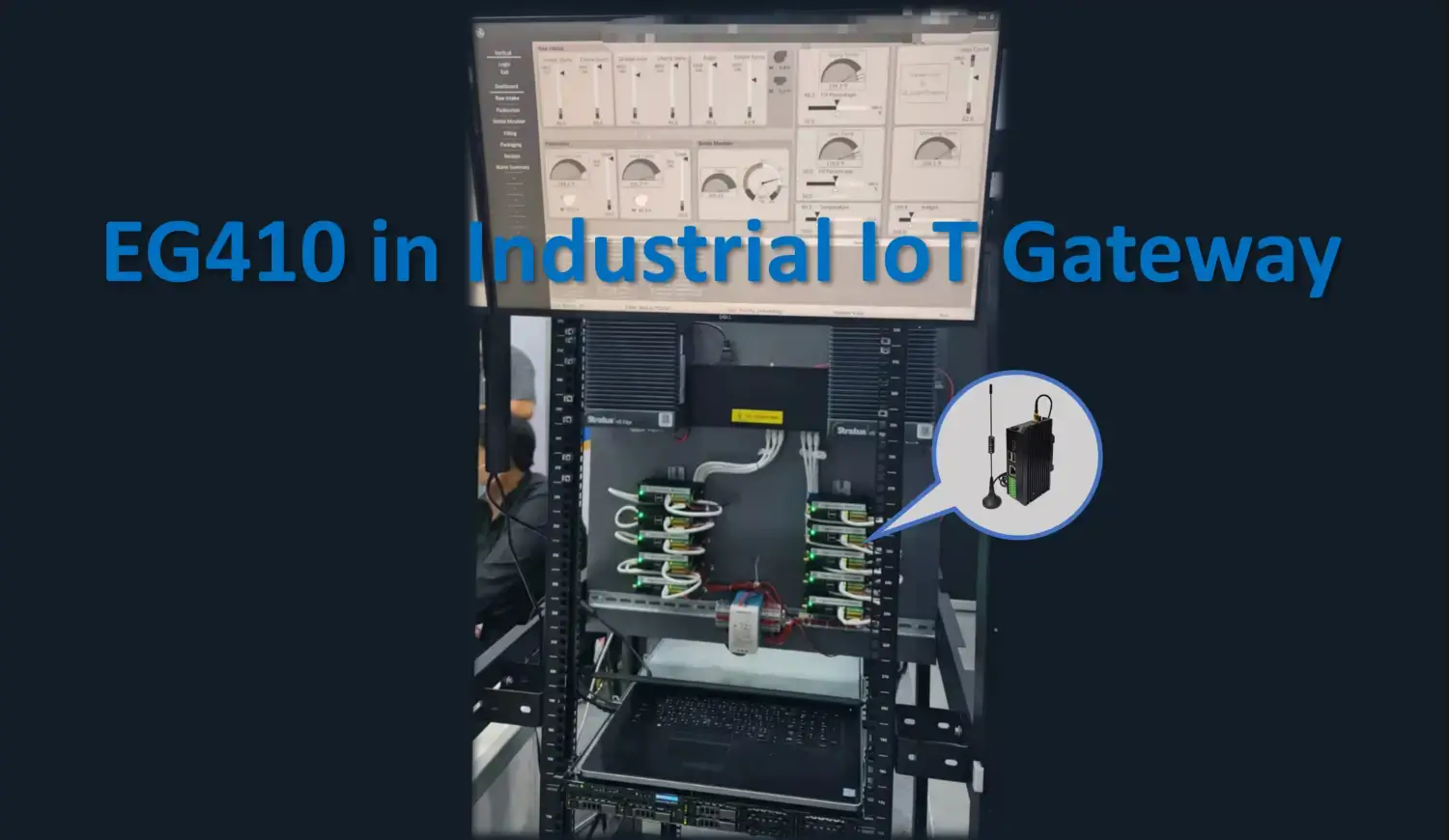

IoT computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Edge Controller (PLC)

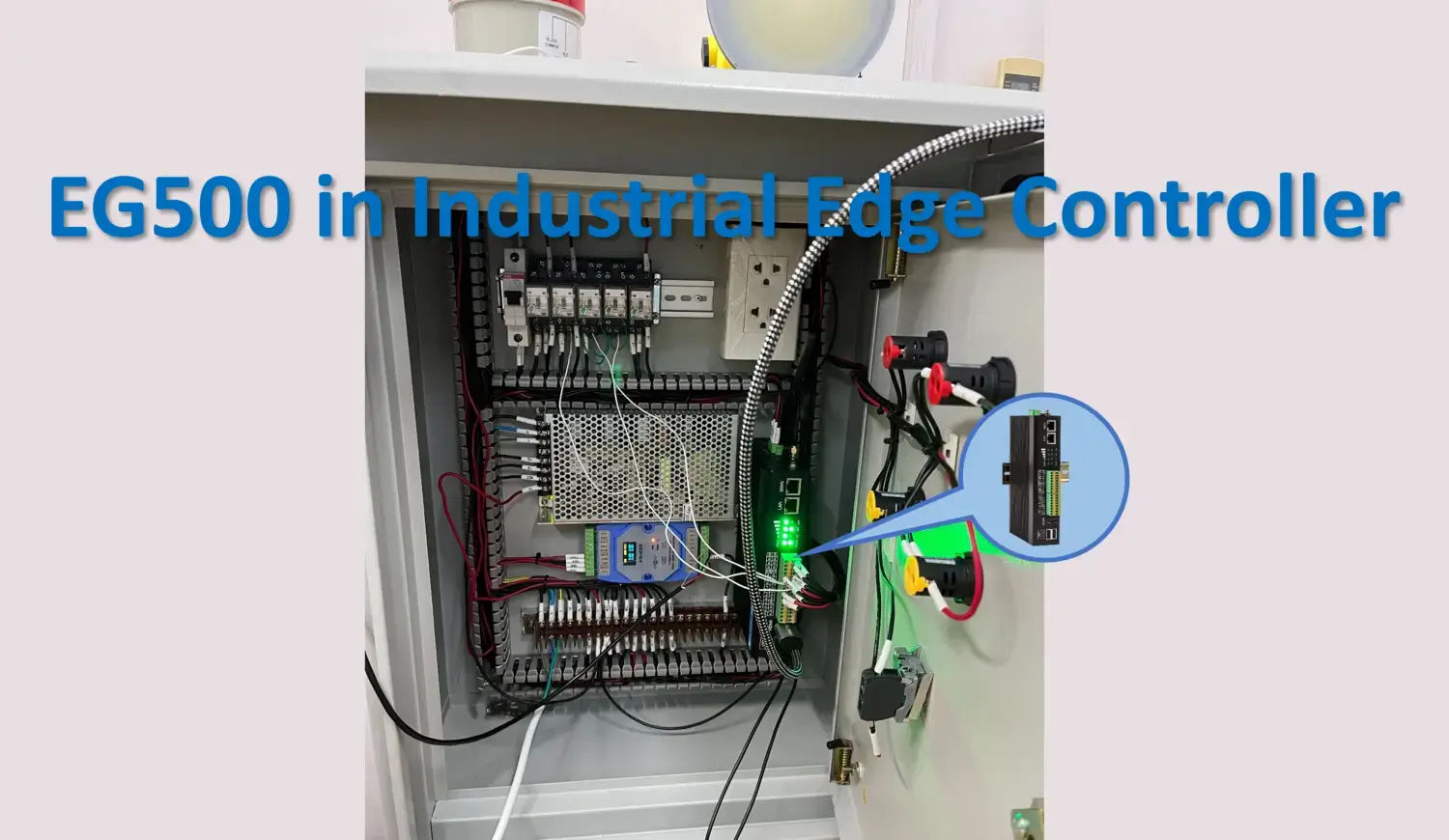

With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, it can easily operate as a typical PLC.
Industrial modem and cellular Router
Built-in cellular module, it can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.

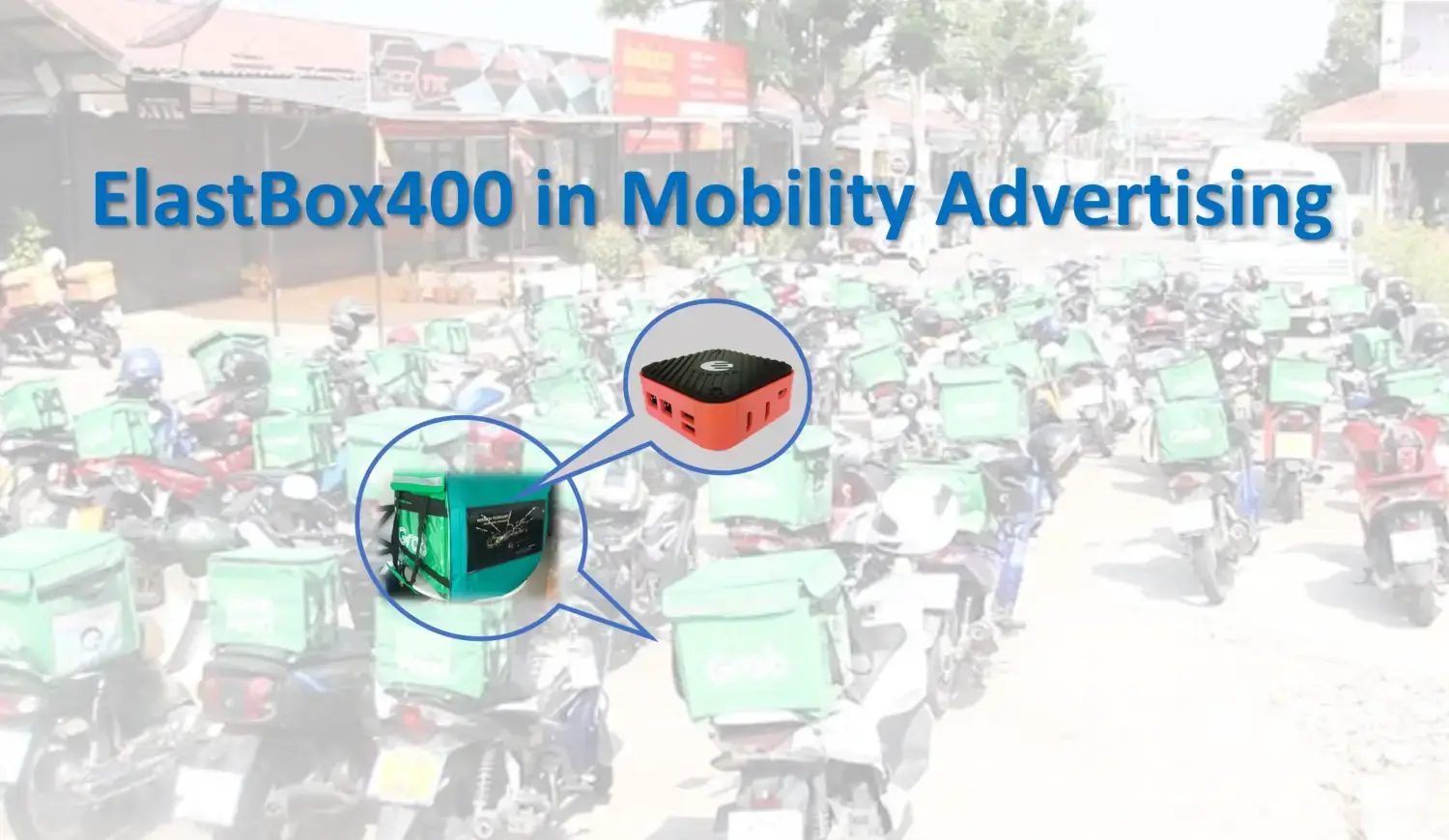

Micro Server Computer
The Compact and high reliability design with HDMI port, allows our products operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Still Looking for Similar Products From other suppliers?
Frequently Asked Questions (FAQ)
For volume orders, please contact with us for more support and better price.
