EG510 Edge Computer
$610.00 – $655.00
Elastel EG510 is an Industrial Raspberry Pi CM5 Edge Computer designed for high-performance and advanced IIoT applications.
- ★ Powered by Raspberry Pi CM5 for edge computing
- ★ Rich industrial interfaces and networking for flexible connectivity
- ★ Industrial-grade design for Reliability
- ★ Raspberry Pi OS easy development, prebuilt ElastPro for OT-to-IT
Description
Elastel EG510 is a high-performance industrial edge computer powered by Raspberry Pi CM5, designed for advanced IIoT applications such as edge computing, automation control, data logging and cloud communication.
It provides rich industrial connectivity including 1x RS485, 1x RS232, 2x GbE, 6×DI, 6×DO, 1×USB 3.0 and other expansion interfaces. Also features a built-in M.2 slot supporting 4G LTE / 3G/ 2G/ NB-IoT, enabling seamless connection to industrial networks and field devices.
Built with an industrial-grade, fanless, and compact enclosure, EG510 ensures reliable operation in harsh environments with -25°C to +65°C operating temperature, along with enhanced EMI and surge protection.
Fully compatible with Raspberry Pi OS, EG510 provides an open and flexible platform for rapid development using Docker, Node-RED, Python, CODESYS and more. It comes pre-installed with ElastPro OT-to-IT software, enabling seamless data acquisition and secure cloud connectivity via protocols such as Modbus, BACnet, OPC UA, and MQTT
Specification
| CPU | Raspberry Pi CM5, Quad-core A76 (ARM v8) @ 2.4 GHz |
|---|---|
| RAM | 4GB (2GB/4GB/8GB/16GB options) SDRAM |
| FLASH | 32GB (16GB/32GB/64GB options) eMMC |
| Ethernet Port | 2x Gigabit Ethernet, (1-WAN 1-LAN Configurable) |
| Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
| Cellular/LoRaWAN | 1x M.2 slot for 4G LTE/3G/2G/NB-IoT/CAT-M1 cellular or LoRaWAN module |
| Antenna Connector | 3x SMA Female connectors reserved for Cellular / Wi-Fi / LoRa / GPS antennas |
| Serial Port (Isolated) | 1x RS-232, 1x RS-485 |
| I/O | 6-channel digital input DI 6-channel digital/pulse output DO |
| USB Port | 1x USB 3.0 |
| HDMI | 1x Micro HDMI 2.0a (Up to 4kp60 video & audio output) |
| Console Port | 1x USB-C for debug Console |
| SIM Solt | 1x Nano SIM |
| Power Supply | 10~36V DC, recommended 24V/1A |
| Real-time clock (RTC) | Embedded RTC |
| Enclosure | Full Aluminum, IP30, DIN-rail |
| Dimension (LxWxH) | 124mm x 76mm x 35mm |
| Weight | 315g (0.69 lb) |
| Operating Temperature | -25 ~ 65°C (industrial grade) |
| Watchdog | Standalone Hardware Watchdog |
| Pre-installed OS | Raspberry Pi OS |
| OT-to-IT Data Collect and Convert | Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP, IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols, MQTT, Sparkplug B... Powered by ElastPro |
| Secondary Development | Docker, Node-Red, Codesys, Ignition, Python, C, C++, C#, Go, Java, JavaScript. Check More… |
Check the Specifications Tab for more details.
Applications
With the Raspberry Pi CM5 high-performance computing capability, and flexible Linux Operating System, EG510 could be applied in any kinds of your applications and PoC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG510 can be configured as an industrial computer operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or ThingsWing.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG410 can easily operate as a typical PLC.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EG410 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Specifications
| Hardware Platform | |
|---|---|
| CPU | Raspberry Pi CM5 (Broadcom BCM2711, Quad-core Cortex-A76 @2.4GHz) |
| Memory | 4GB (2GB/4GB/8GB/16GB optional) SDRAM |
| Flash | 32GB (16GB/32GB/64GB optional) eMMC |
| Network & Interfaces | |
| Ethernet | 2 × Gigabit Ethernet (1-WAN / 1-LAN configurable) |
| Cellular (optional) | Global 4G LTE / 3G / 2G / NB-IoT / CAT-M1 cellular module via M.2 socket |
| Wi-Fi (optional) | 2.4GHz / 5GHz IEEE 802.11 b/g/n/ac + Bluetooth 5.0 |
| GPS (optional) | Supported via built-in cellular module |
| SIM | 1.8V / 3V Nano SIM card holder (drawer type) ×1 15KV ESD protection |
| Antenna | 3 × SMA female connectors for Cellular / Wi-Fi / LoRa / GPS |
| Industrial Serial Port | RS-232 ×1, RS-485 ×1 RS-232: TXD, RXD, GND RS-485: A, B, GND ESD protection: 15KV |
| I/O | 6-channel digital input (DI) 6-channel digital/pulse output (DO) |
| USB | 1 × USB 3.0 (for peripherals) 1 × USB-C (for console) |
| HDMI | 1 × Micro HDMI 2.0a (up to 4Kp60 video & audio output) |
| M.2 | 1 × M.2 socket with 3042 card support for cellular module |
| Power | |
| Power Supply | Wide range 10~36V DC (recommended 24V / 1A) |
| Power Terminal | Unpluggable industrial terminal connection |
| Power Consumption | < 10W (system) |
| Real-time Clock (RTC) | Embedded RTC |
| Mechanical Features | |
| Protection | IP30 |
| Housing | Aluminum heatsink |
| Cooling | Fanless cooling |

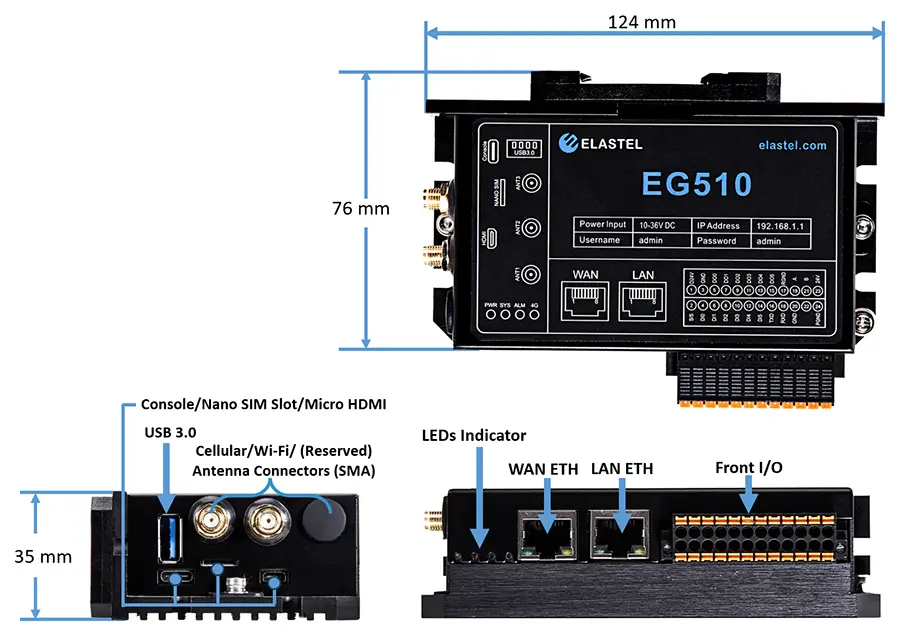

| Dimensions | 124 × 76 × 35 mm |
| Installation | DIN-rail, wall mounting |
| Ambient Temperature & Humidity | |
| Operating Temperature | -25 ~ 65°C (industrial grade) |
| Storage Temperature | -40 ~ 85°C |
| Ambient Humidity | 5 ~ 95% (non-condensing) |
| Others | |
| LED Indicator | 1 × POWER, 1 × SYSTEM, 1 × ALARM, 1 × NETWORK |
| Watchdog | Standalone watchdog timer |
| Certification | CE, FCC (TBD) |
| Warranty | Standard 12 months |
| Software Features | |
| OS | Raspberry Pi OS |
| Configuration | WebUI, GUI, Local CLI, Remote Configuration (optional) |
| Upgrade Operation | Local USB upgrade and remote upgrade (optional) |
| OT-to-IT Applications | Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP, IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols, MQTT, Sparkplug B… Data collection and conversion powered by ElastPro |
| Secondary Development | Docker, Node-RED, CODESYS, Ignition, Python, C, C++, C#, Go, Java, JavaScript… |
1 review for EG510 Edge Computer
Related products
-
EG500 Edge Computing Gateway
$530.00 – $714.00Elastel EG500 is an Industrial Raspberry Pi engineered as an Edge Computing Gateway for IIoT applications.
- ★ Powered by RPi CM4, variant RAM + eMMC editions available
- ★ Rich industrial interfaces and networking for flexible connectivity
- ★ Industrial-grade design for Reliability, CE FCC… certified
- ★ Open Raspbian OS easy development, prebuilt ElastPro for OT-to-IT
-
ElastBox400 Industrial Computer
$199.00 – $505.00ElastBox400 is an industrial-grade edge computer designed for industrial IoT applications.
Powered by high-performance Raspberry Pi CM4, with 4G/LTE Compatible, dual Gigabit Ethernet, dual USB ports, and dual HDMI 4K Ultra HD output makes ElastBox suitable for Unattended Retail, Digital Signage, Public Transportation Advertising, NAS applications, etc.
-

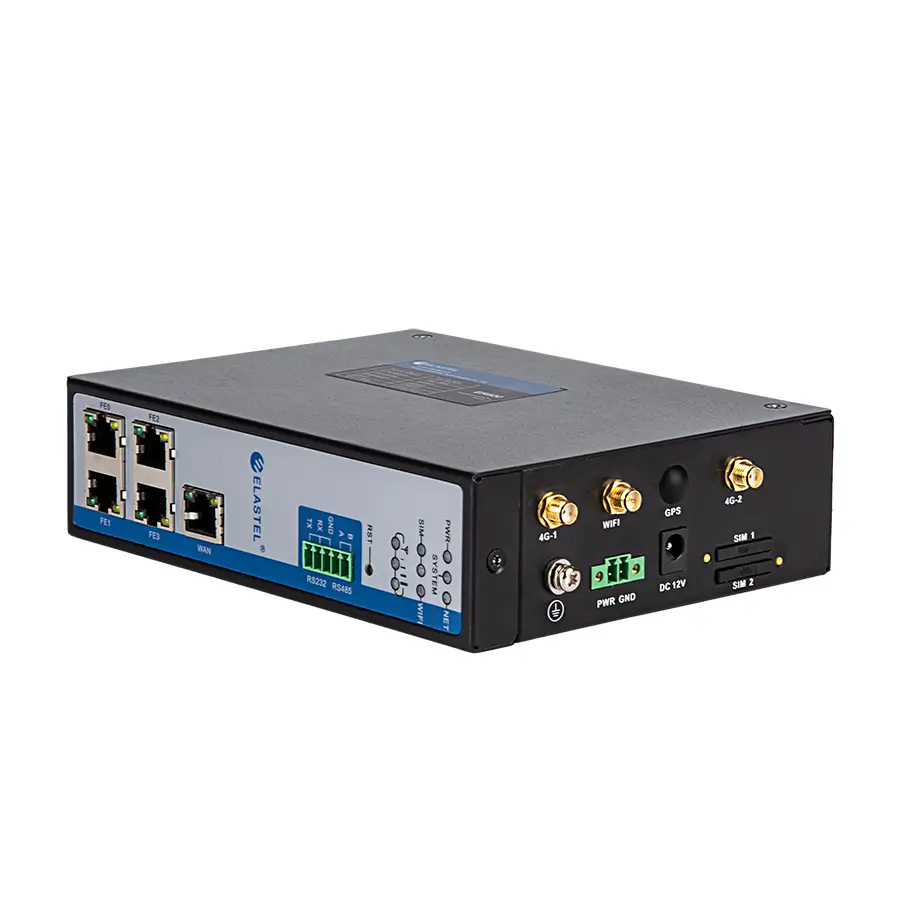

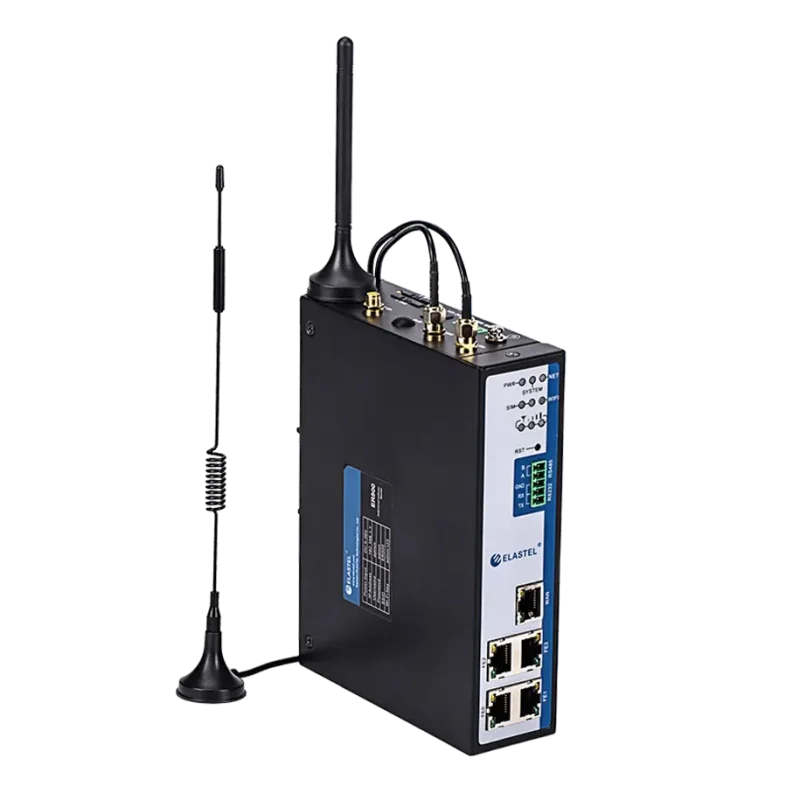

ER500 Industrial Dual-SIM Cellular Router
