EG410 IoT Gateway
$430.00 – $569.00
Elastel EG410 is an Industrial Raspberry Pi typically used as an industrial IoT gateway for IIoT applications.
- ★ Powered by RPi CM4, variant RAM + eMMC editions available
- ★ Rich industrial interfaces and networking for flexible connectivity
- ★ Industrial-grade design for Reliability, CE FCC… certified
- ★ Open Raspbian OS easy development, pebuilt ElastPro for OT-to-IT

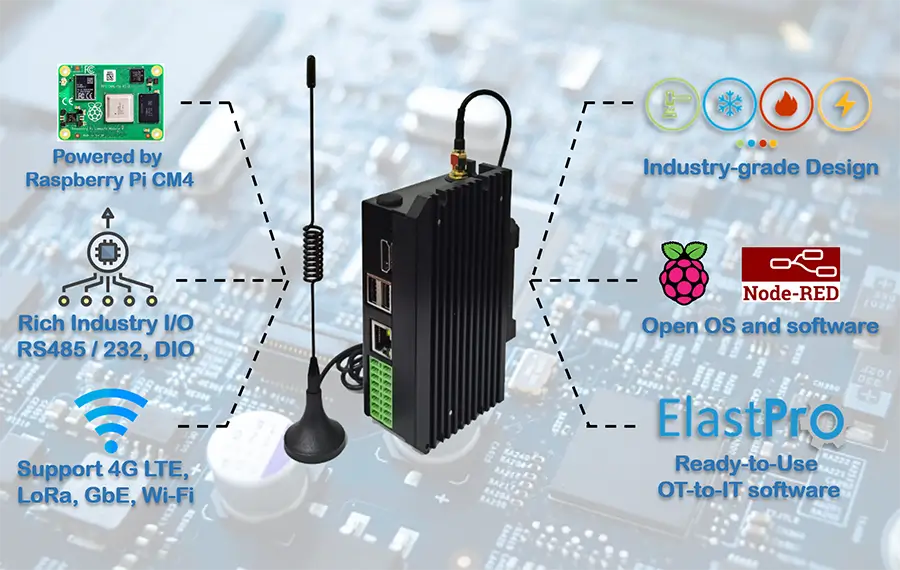

Description
Elastel EG410 is a high-performance industrial computer powered by Raspberry Pi CM4, designed as an IoT Gateway for IIoT applications.
It offers rich industrial connectivity including 1x RS485, 1x RS232, 1x GbE, 2×DI, 2×DO, ... and more. Also integrated 1x miniPCIe slots supporting 4G LTE/3G/2G/NB-IoT or LoRaWAN network.
Industrial-grade design with rugged, fanless, and compact enclosure ensures reliable operation in -25°C to +70°C wide temperature range, EMI/surge protection, backed by CE, FCC, ... certifications.
Benefit from the open Raspbian OS and its rich ecosystem, enabling flexible and easy application development for rapid PoC and large-scale deployment. What's more, the preloaded ElastPro software makes EG410 ready for seamless OT-to-IT integration.
Specification
| CPU | Raspberry Pi CM4, Quad-core A72 (ARM v8) @ 1.5 GHz |
|---|---|
| RAM | 1GB/2GB/4GB/8GB options LPDDR4 |
| FLASH | 8GB/16GB/32GB options eMMC |
| Ethernet Port | 1x Gigabit Ethernet, (1-WANor 1-LAN Configurable) |
| Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
| Cellular/LoRaWAN | 1x mPCIe slot for 4G LTE/3G/2G/NB-IoT/CAT-M1 cellular or LoRaWAN module |
| Antenna Connector | 2x SMA Female connectors reserved for Cellular / Wi-Fi / LoRa / GPS antennas |
| Serial Port (Isolated) | 1x RS-232, 1x RS-485 |
| I/O | 2-channel digital input DI 2-channel digital/pulse output DO |
| USB Port | 2x USB 2.0 |
| HDMI | 1x HDMI 2.0 (Up to 4kp60 video & audio output) |
| Console Port | 1x USB-C for debug Console |
| SIM Solt | 1x Micro SIM (12mm*15mm) |
| Power Supply | 9~36V DC, recommended 24V/1A |
| Additional Drive | 1 x M.2 socket for 2242 NVME SSD |
| Enclosure | Full Aluminum, IP30, DIN-rail |
| Dimension (LxWxH) | 124mm x 76mm x 35mm |
| Weight | 315g (0.69 lb) |
| Operating Temperature | -25 ~ 70°C (industrial grade) |
| Watchdog | Standalone Hardware Watchdog |
| Pre-installed OS | Raspbian |
| OT-to-IT Data Collect and Convert | Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP, IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols, MQTT, Sparkplug B... Powered by ElastPro |
| Secondary Development | Docker, Node-Red, Codesys, Ignition, Python, C, C++, C#, Go, Java, JavaScript. Check More… |
Check the Specifications Tab for more details.
Applications
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EG410 could be in any kinds of your applications and PoC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG410 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG410 can easily operate as a typical PLC.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EG410 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Specifications
| Hardware platform | |
| CPU | Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
| Memory | 2GB (1GB/4GB/8GB optional) LPDDR4 |
| FLASH | 8GB (16GB/32GB optional) eMMC |
| Network & Interfaces | |
| Ethernet | Gigabit Ethernet x 1, (1-WAN or 1-LAN Configurable) |
| Cellular | 4G LTE / 3G / 2G / NB-IoT / CAT-M1 |
| Wi-Fi | Dual-band 2.4GHz/5GHz 802.11b/g/n |
| Bluetooth | Supported |
| GPS | Cellular Module built-in supported (Optional) |
| SIM | 1.8 V/3 V; drawer-type Nano card holder × 1 |
| 15KV ESD Protection | |
| Antenna | 4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1 |
| Industrial Serial Port | RS-232 x 1，RS-485 x 1; |
| RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND; ESD protection: 15KV | |
| I/O | 2-channel digital input DI |
| 2-channel digital/pulse output DO | |
| USB | USB 2.0 x 2 for peripherals, |
| USB-C x 1 for Power supply and Console | |
| HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
| Additional drive | 1 x M.2 socket with 2242 NVME SSD support |
| Standalone Watchdog timer | |
| Power | |
| Power supply | Wide Range Voltages 9~36V DC/1A |
| Power Terminal | Unpluggable industrial terminal connection |
| Power consumption | Less than 10 W (system) |
| (Optional) Real-time clock (RTC) | Embedded RTC, power supply with a supercapacitor |
| Mechanical features | |
| Protection | IP30 |
| Housing | Aluminum Heatsink |
| Cooling | Fanless cooling |
| Dimensions (cm) | 124mm x 76mm x 35mm |
| Installation | DIN-rail, wall mounting |
| Ambient temperature and humidity | |
| Storage temperature | -30 ~ 75°C |
| Ambient humidity | 5 ~ 95% (non-condensing) |
| Operating temperature | -25 ~ 70°C (industrial grade) |
| EMC index | |
| Static electricity | level 3 |
| Radiated electric field | level 3 |
| Surge | level 3 |
| Others | |
| Certification | CE |
| Warranty | Standard 12 Months |
| Software Features | |
| OS | Raspbian with SDK /OpenWRT V21 |
| Configuration | WebUI, Local CLI, Remote configuration |
| Upgrade operate | Local USB upgrade and remote upgrade (optional) |
| Timed startup and shutdown | Supported |
| Application features | Data Acquisition, Modbus RTU, VPN, Router, Firewall, Media Player… |
| Python, Node-RED, Docker…, Support Secondary Development. | |
| OpenVPN, L2TP, PPTP, IPSec, WireGuard VPN, ZeroTier… | |
| Network Features | WWAN and WAN Failover, Load Balance, |
| PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, | |
| DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, | |
| Modbus RTU/TCP, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH | |
