April 27, 2022EG500 WiFi HaLow Gateway
$438.00 – $548.00

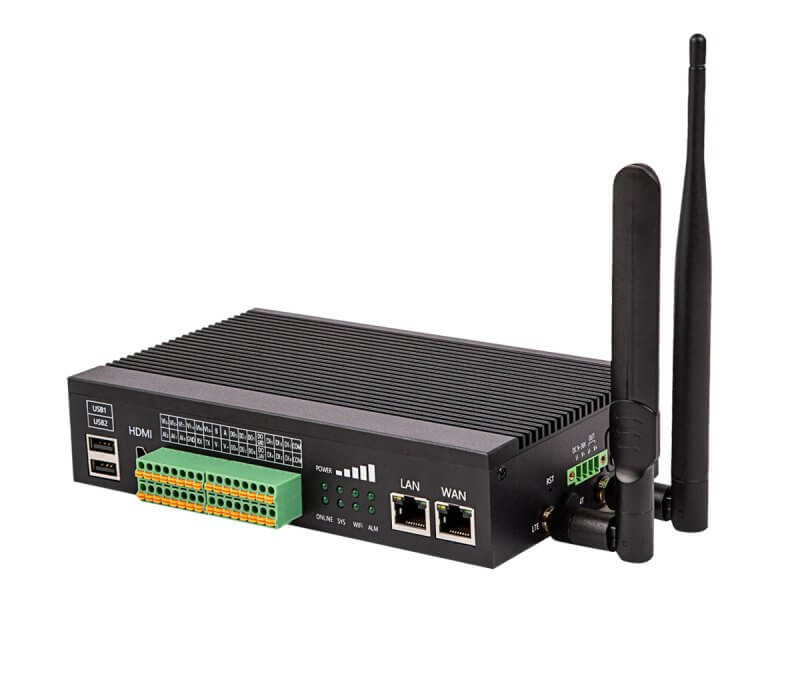

Elastel EG500 IoT Gateway WiFi HaLow Edition is an industrial IoT Gateway designed for IoT applications those specially using 802.11ah WiFi HaLow technology. Leverage SX-NEWAH module from SilexTechnology, the first industrial IEEE 802.11ah Wi-Fi module, EG500 is able to as a WiFi HaLow Gateway/Router for your IoT projects.

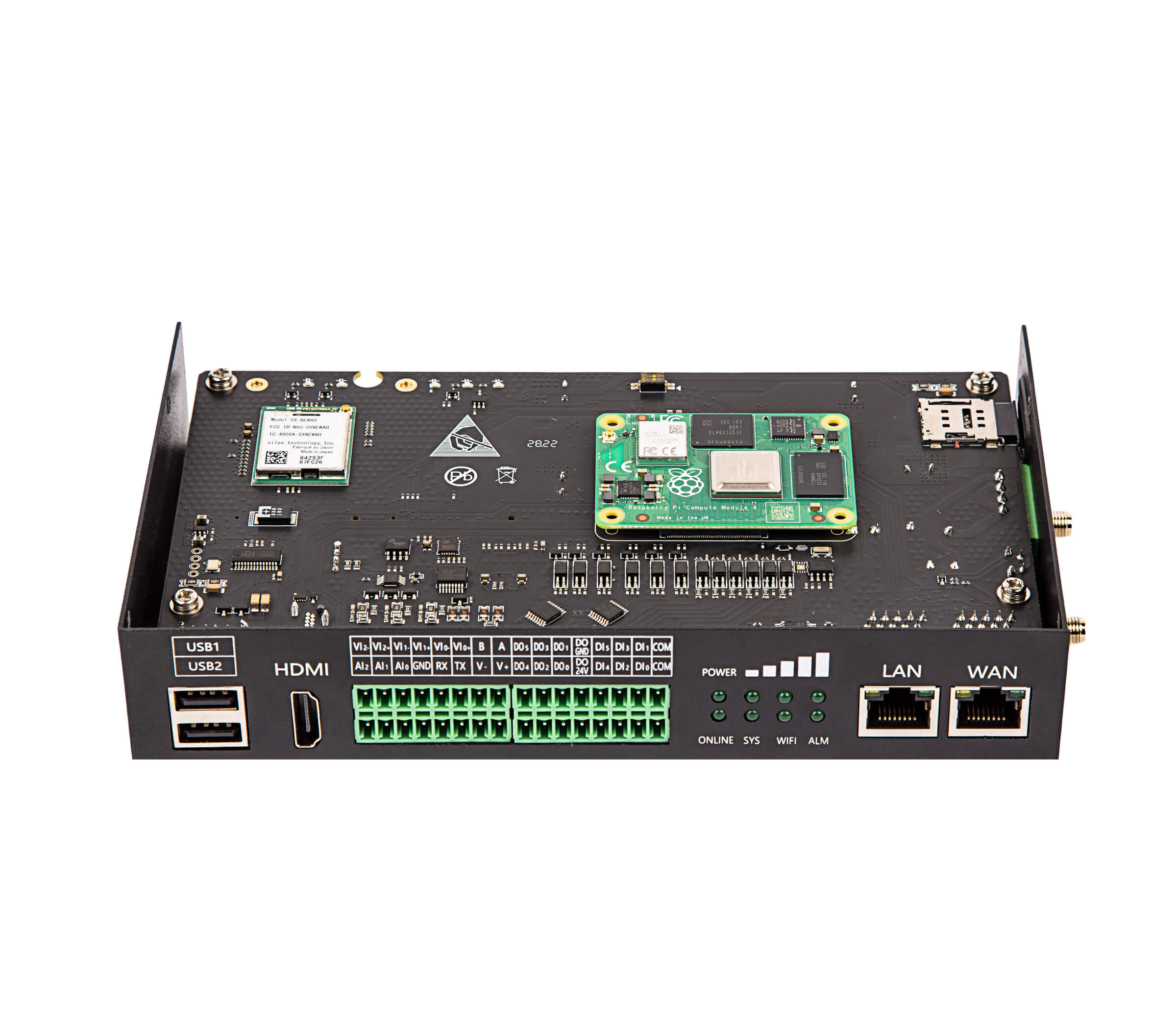

- ★ Powered by high-performance Raspberry Pi CM4.
- ★ Leverage SX-NEWAH module that operates in the Sub 1GHz Long range (up to 1 km) LPWAN technology.
- ★ GbE Wired, 4G LTE, 2.4G/5G WiFi for WAN connectivities.
- ★ Industrial-grade carrier board with RS232/RS485/DI/DO and enclosure.
WiFi HaLow (802.11ah) LPWAN Technology
- Powered by SX-NEWAH module, the first industrial IEEE 802.11ah Wi-Fi module that operates in the Sub 1GHz band
- Long range (up to 1 km) coverage connectivity
- Easily integrate SX-NEWAH in an existing IP network, operate same as regular Wi-Fi
- Rich Data Rates up to 15Mbps with enough throughput to support TCP/IP
- Support over 1000 nodes per access point, no need repeaters.
Numerous interfaces support edge devices
- Isolated Serial Port 1x RS485, and 1x RS232
- Industrial-grade isolated 6x DI, 6x DO and 3x ADC
- 2x 10/100/1000Mbps Gigabit Ethernet Port
- 1x Up to 4kp60 supported HDMI output
- 2x High-Speed USB 2.0 Ports
-
Compatible with multiple industrial protocols including:
Modbus TCP, Modbus RTU, OPC UA, EtherNET/IP, ISO on TCP, Mitsubishi MC serials...
Powerful Computing Operation Platform
Powered by Raspberry Pi CM4 which featured high-performance edge computing capabilities, it's easy to build up your IoT projects and PoC applications.
- ARM Cortex-A72 Quad-core processor 1.5GHz, 1GB RAM + 8GB eMMC (diverse RAM and Storage optional)
- Raspbian/OpenWRT Based Linux OS, Docker, Node-RED, Python... available with SDK provided by Elastel
- Pre-compiled software bundled for common application like data acquisition, Modbus collection, MQTT...
- Easy interoperate with IoT Ecosystem like Microsoft AZURE, Amazon AWS, AliCloud, ThingsBoard platforms, etc.
Industrial-grade Design for Reliability & Security
From computing module, communication module to each electronic components, EG500 adopts strict industrial grade standards. Solid and durable housing and SIM lock secure it at your remote edge field .
- Fanless design achieved wide Operating Temperature from -30°C to +70°C

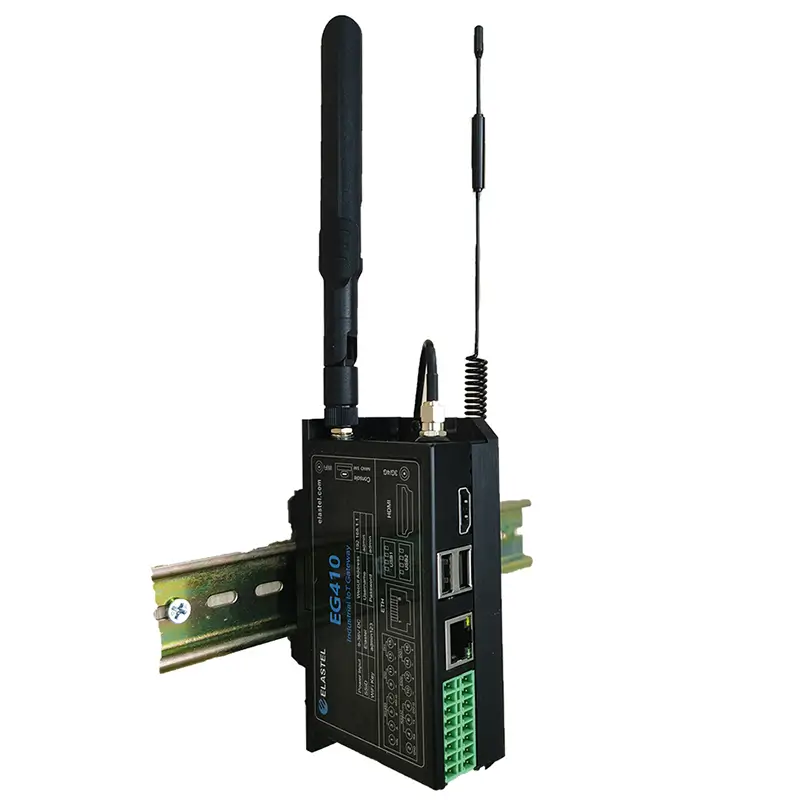

- 35mm DIN-Rail and wall mount Supported
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
- Built-in RTC with supercap
- SIM card slot and Console port lock set the data secuirty
Applications
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EC500 could be applied in many kinds of scenarios.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG410 can easily operate as a typical PLC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG410 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EC500 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Product Compare
Model | EG410 | EG500 |
Cellular network | 4G LTE CAT4/CAT6, 3G, 2G, NB-IoT, CAT-M1 | |
Ethernet port | 1x 10/100/1000Mbps | 2x 10/100/1000Mbps |
Wi-Fi | Dual-band 2.4GHz/5GHz 802.11b/g/n | |
802.11ah WiFi (WiFi HaLow) | x | Supported (Optional) |
LoRa | x | Supported (Optional) |
Bluetooth | √ | |
Serial Port | 1x RS232, 1x RS485 | |
Digital I/O | 2x DI and 2x DO | 6x DI and 6x DO |
Analog Input | x | 3x ADC |
USB | 2x USB2.0 | |
HDMI | 1x HDMI 2.0 | |
Console port | √ | |
LED indicator | 1-power, 1-system | 1-POWER, 1-WiFi, 1-SYSTEM, 1-ALARM,1-ONLINE, 3-Signal Strength |
Power Supply | Wide Range Voltages 9~36V DC/1A | |
Power Output | x | √ |
Factory Reset Button | x | √ |
Related products
-
EG324 Lite IoT Gateway
Rated 5.00 out of 5$155.00 – $199.00The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.
- ★ ARM Dual-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Linux OS with prebuilt Web-based data acquisition programs
These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.
-
ER500 Industrial Dual-SIM Cellular Router
$215.00 – $265.00The Elastel Elink series industrial cellular router ER500, is a dual-SIM cellular router that integrates global 4G LTE, with 5x 10/100 Mbps Ethernet ports and Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
- ★ 5x 10/100 Mbps ETH ports (1-WAN 4-LAN, or 5-LAN), Wi-Fi integrated
- ★ Easy-to-use webUI with prebuilt Serial-to-IP data SCADA features
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
-

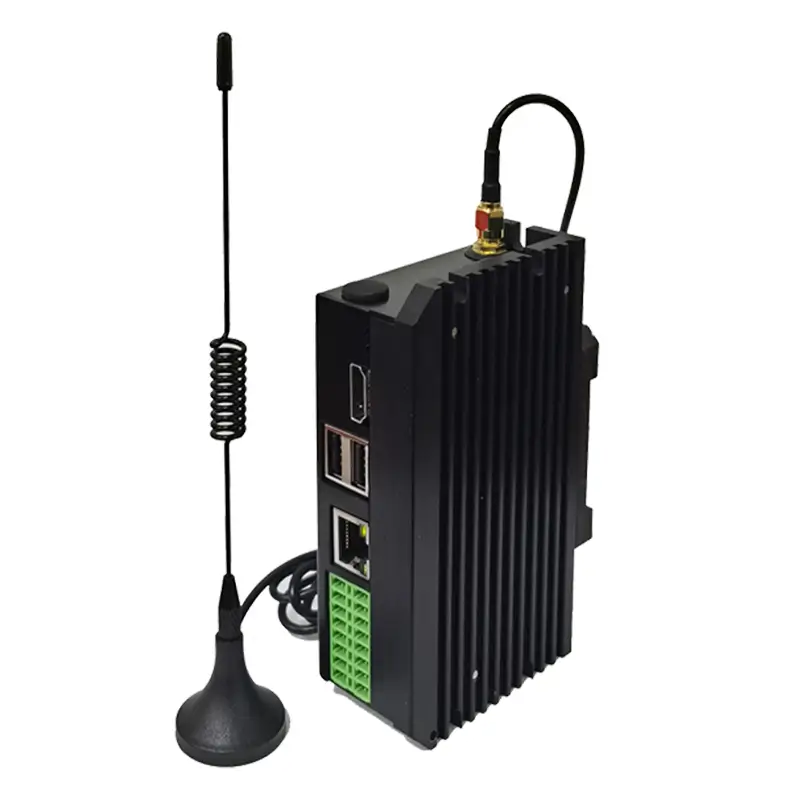

EG410 IoT Gateway
