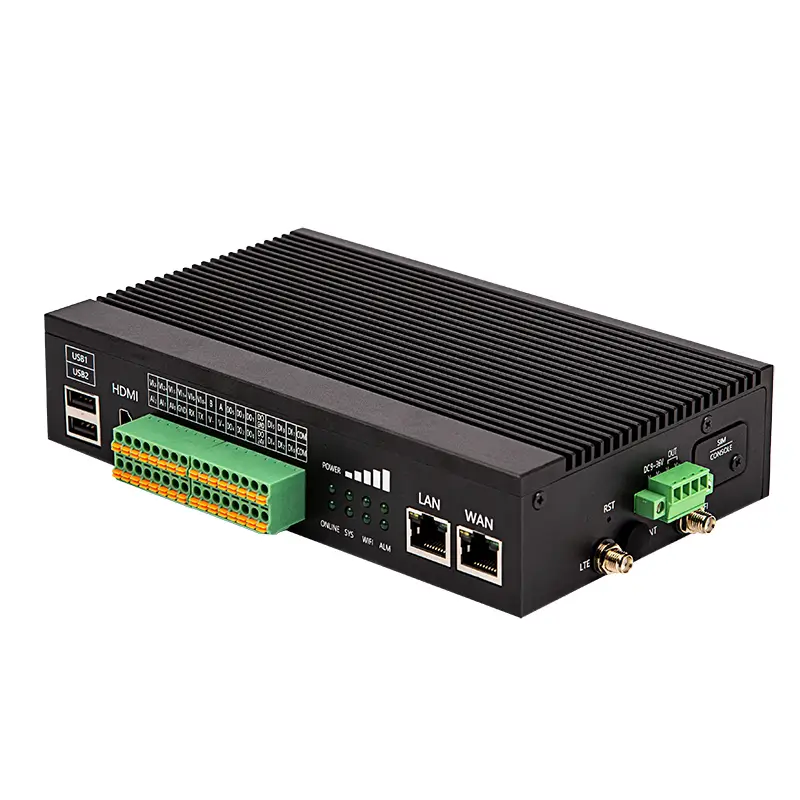

EG500 WiFi HaLow Gateway
March 24, 2022
EC212 Industrial DTU
July 21, 2022

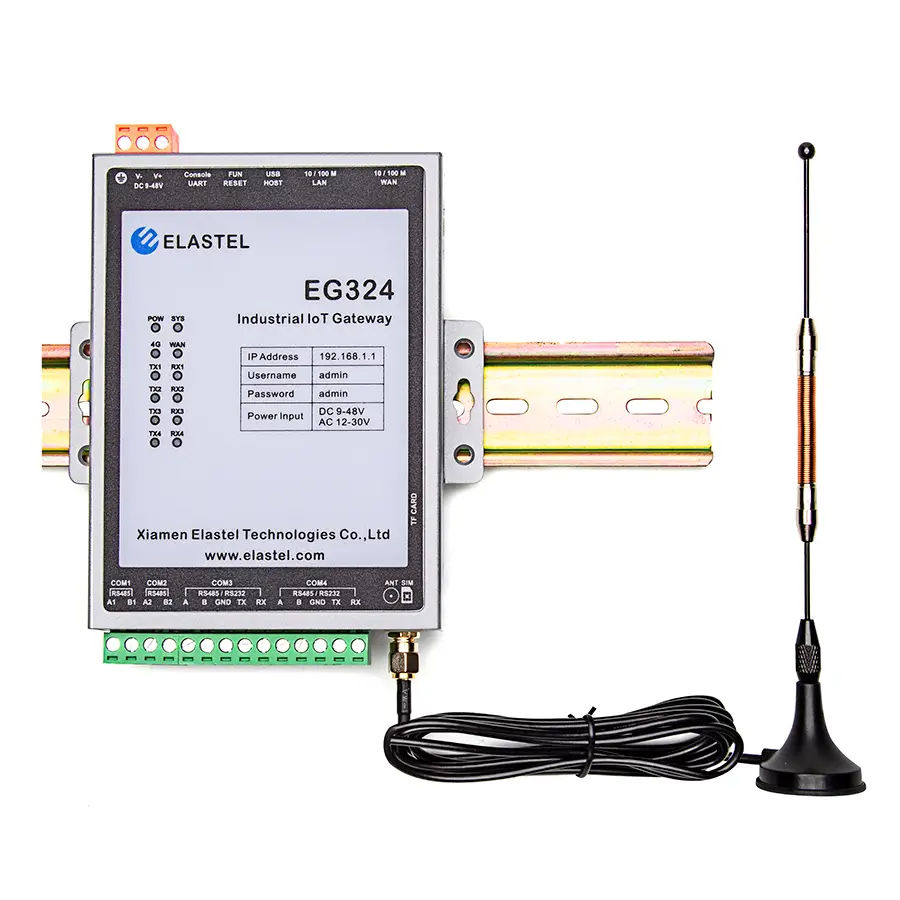

EG324 IoT Gateway
$255.00 – $300.00

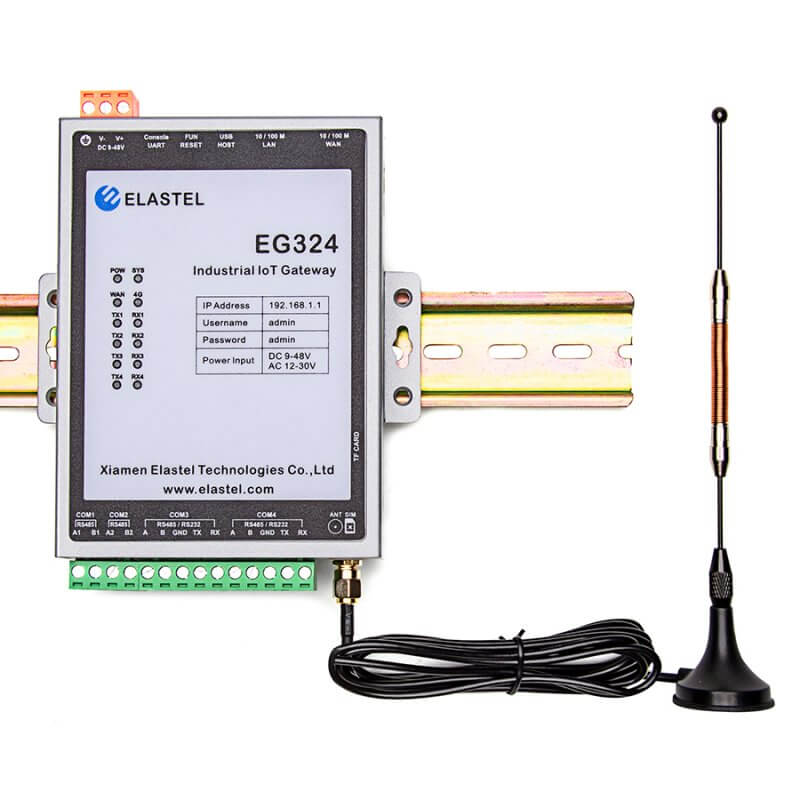

Elastel EG324 is an ARM-based embedded computer engineered as an Industrial IoT gateway.
- ★ Armv7 Cortex-A9 quad-core @1.4 GHz CPU, 512MB RAM + 8GB eMMC
- ★ Rich industrial interfaces for flexible connectivity
- ★ Truly Open and Programmable OS. Prebuilt ElastPro for OT-to-IT
- ★ Industrial-grade design for Reliability, CE FCC… certified
Description

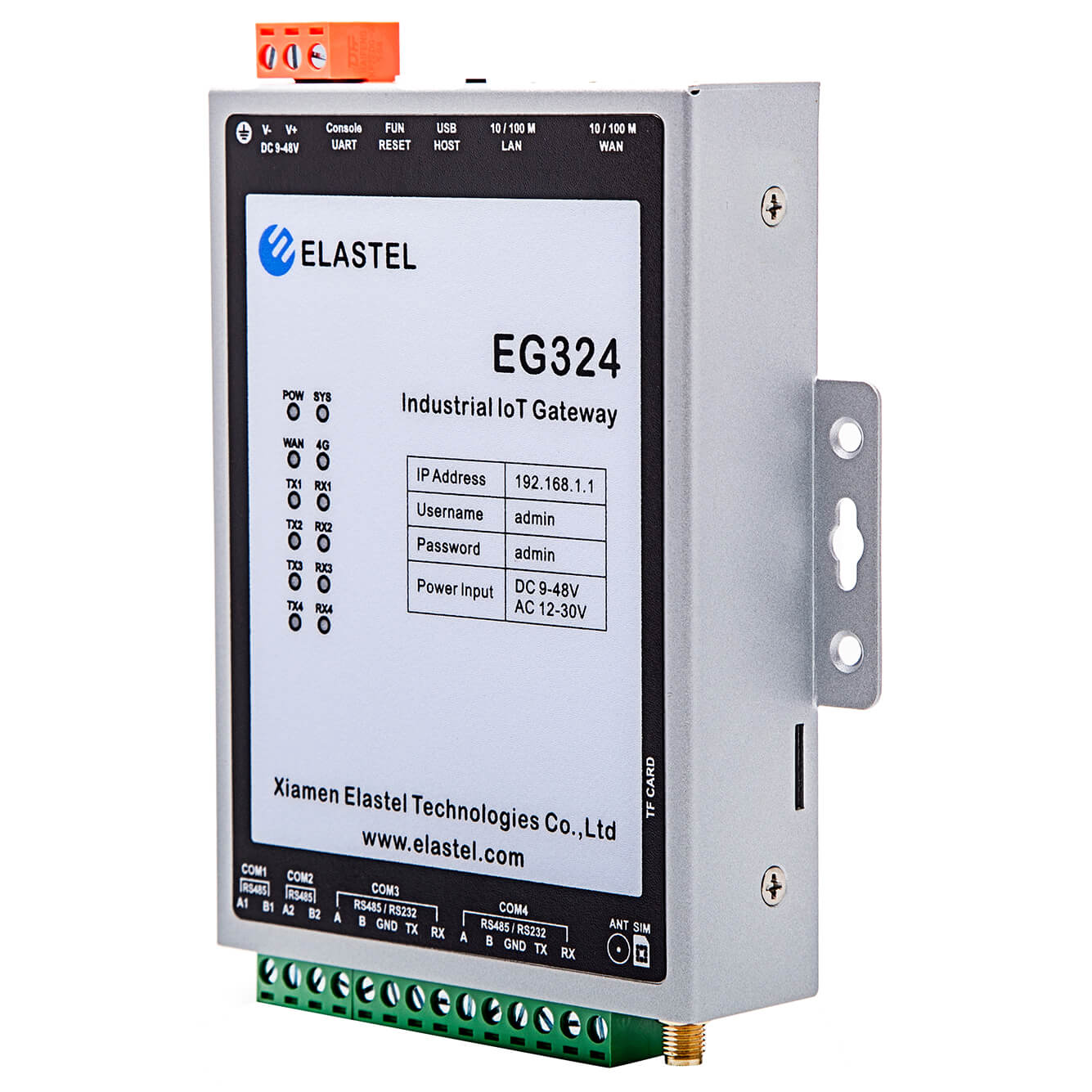

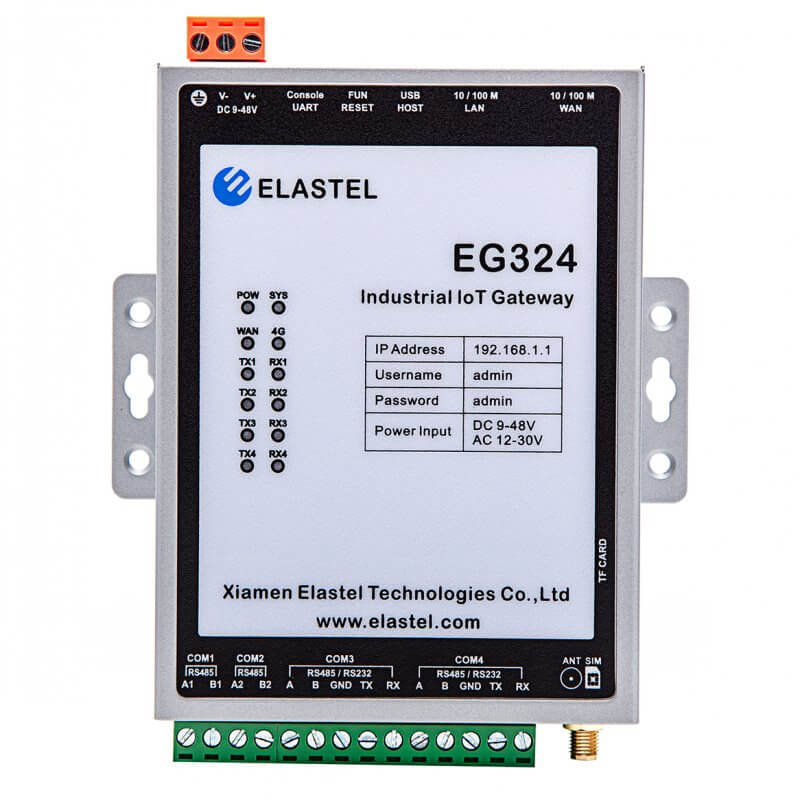

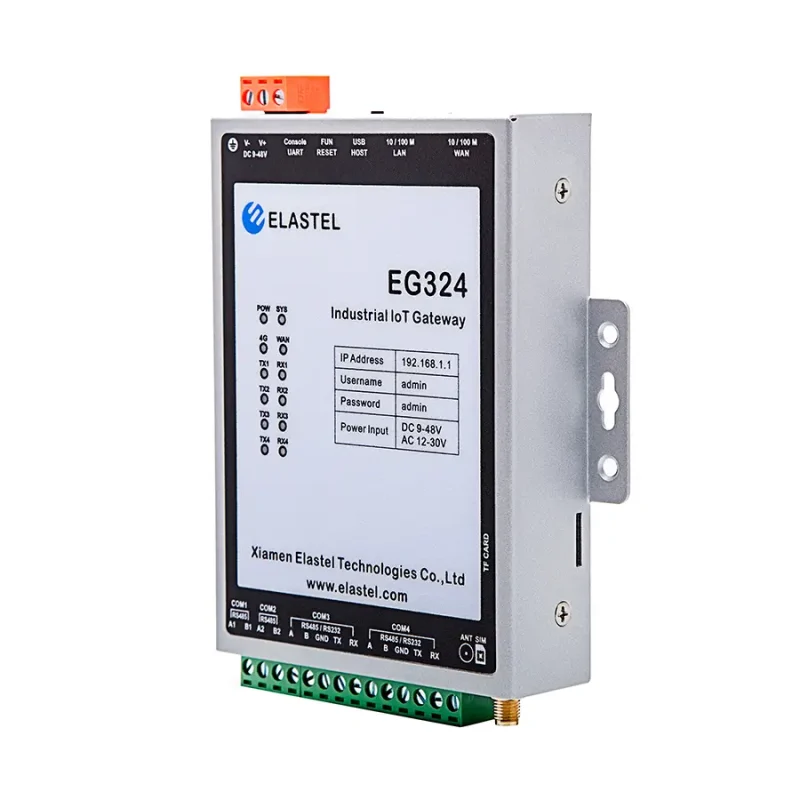

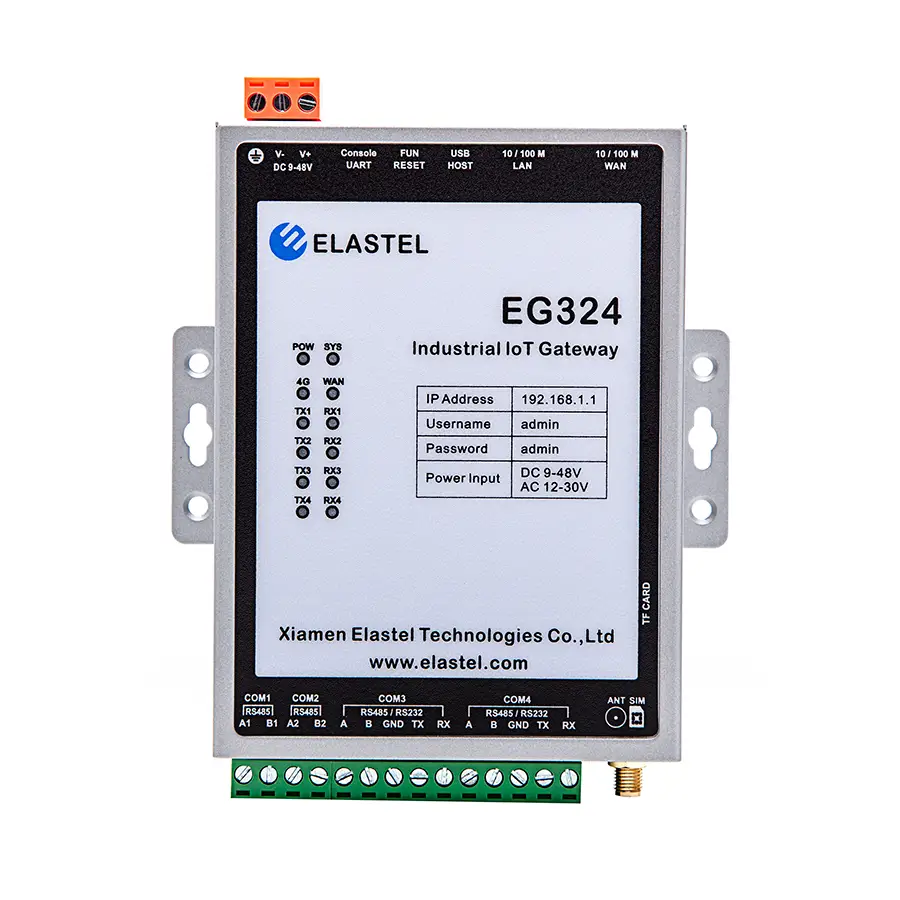

Elastel EG324 is a high-performance industrial computer powered by ARM Cortex-A9, typically used as an industrial IoT gateway.
It features 4x RS485/232 COM ports, 2xEthernet ports, and integrated a miniPCIe socket for 4G LTE/3G/2G/NBIoT and Wi-Fi connectivity.
With full Industrial-grade design, ensures this compact embedded computer reliable operation in harsh environments, including wide temperature (-40°C to +85°C), resistant to EMI, surge. It complies with CE, FCC, RoHS... certifications.
Preloaded with Ubuntu OS and ElastPro software, it provides an open and programmable platform for rapid develop your IIoT applications such as data acquisition, remote monitoring, and edge computing.

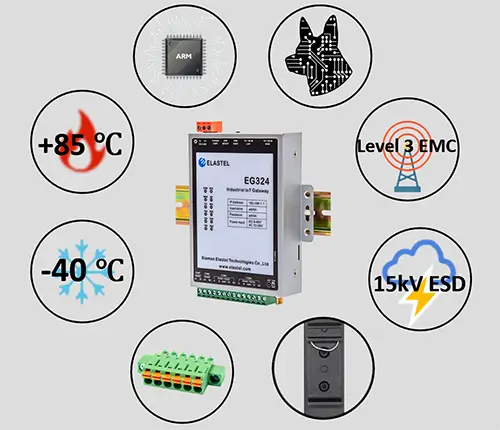

🔧 Designed for Industrial Applications
- High-performance Arm Cortex-A9 quad-core @1.4 GHz, 512MB (1GB optional) RAM, 8GB eMMC

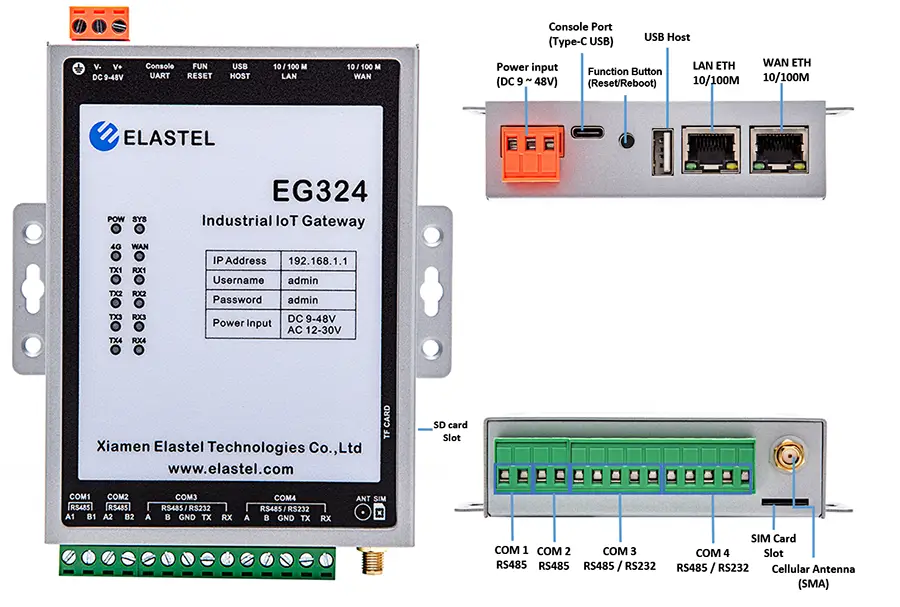

- Equipped with 4× RS485/RS232 COM ports, 2× ETH ports, USB, TF slot for industrial connectivity
- Integrated miniPCIe socket supporting 4G LTE / 3G / 2G / NB-IoT and Wi-Fi network
- Industrial-grade design: -40°C to +85°C, resistant to EMI, surge, durable, compact, DIN-rail enclosure
- Fully compliant with CE, FCC, RoHS... certifications, Check More...
💻 Open Linux OS for Flexible Development
- Preloaded with Ubuntu 20.04 OS, truly open, configurable and programmable
- Support Node-Red, Docker, MQTT, and other open source software.
- Easily integrate with 3rd-party platforms like Azure, AWS, Ignition, CodeSys, etc.
- Programmable in Python, C/C++, C#, Go, Java, JavaScript. Check more...

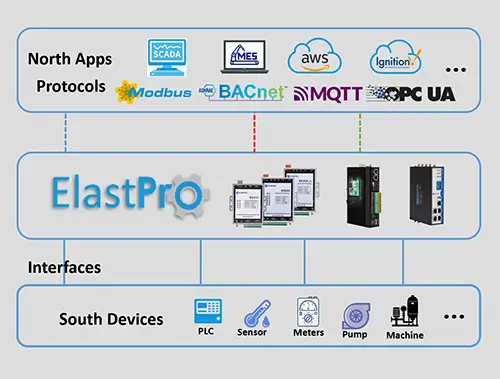

⚙️ ElastPro: Built-in IIoT Gateway Applications
- Free to use, with OTA updates, backed by Elastel 10+ years of OT-to-IT experience
- Web-based tools for easy device management and network configuration
- Zero-code visible configuration for edge data collect and protocol conversion
- Enables secure remote access via ThingsWing Zero-Trust-Networking system. Check more...
Specification
| CPU | Armv7 Quad-core Cortex-A9 @1.4 GHz |
|---|---|
| RAM | 512MB DDR3 (1GB optional) |
| Storage | 8 GB eMMC |
| Storage Expansion | 1x TF Slot |
| Serial Port (Isolated) | 2 x RS485 + 2 x RS-232/485 |
| Ethernet Port | 2 x 10/100 Mbps ports (RJ45 connector) |
| Wireless Module Slot | 1 x mPCle slot for Cellular or Wi-Fi module |
| Antenna Connector | 1x SMA Female connector for Cellular or Wi-Fi antenna |
| SIM Solt | 1x Micro SIM (12mm*15mm) |
| USB Port | 1x USB 2.0, support USB peripherals (like WiFi adaptor) |
| Console Port | 1 x UART type-C connector |
| Button | 1x button for Reboot and Reset |
| Power Supply | 9 ~ 48 VDC, 12 ~ 30 VAC |
| LED Indicator | Power x 1, System x 1, Cellular WAN x 1, WAN x 1, COM trans x 8 (TX + RX) |
| Dimension (LxWxH) | 128.8mm x 117mm x 28mm (LxWxH) |
| Weight | 470 g (1.04 lb) |
| Operating Temperature | Industrial-grade -40 to 85°C (-40 to 185°F) |
| Pre-installed OS | Ubuntu core 20.04, easy Configurable and Programmable |
| OT-to-IT Data Collect and Convert | Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols, MQTT, Sparkplug B... Powered by ElastPro |
| Secondary Development | Docker, Node-Red, Python, C, C++, C#, Go, Java, JavaScript. Check More... |
Check the Specifications Tab for more details.
Applications
These versatile capabilities deliver a high-performance computing platform for any kinds of applications, like data acquisition, protocol conversion, edge processing, and cloud communication in IIoT.
Modbus Gateway
Benefit with ElastPro software, just few visible steps configuration to Data collect from Modbus RTU slave devices, convert to Modbus TCP, or post to cloud MQTT. It is perfect as a Modbus Gateway. Learn More...
Node-Red Gateway
EG324 was pre-installed with Node-RED, which enabling you to address or read out the protocols of the sensors and actuators in the field and to establish communication. It's ideal hardware for Node-RED. Learn More...
Specifications
| System | |
| CPU | Armv7 Quad-core Cortex-A9 @1.4 GHz |
| RAM | 512MB DDR3 (1GB optional) |
| Storage | 8 GB eMMC |
| Storage Expansion | 1x TF slot (up to 128GB) |
| Serial Interface | |
| Serial Port (Isolated) | 2 x RS485 + 2 x RS-232/485 |
| Protection | Surge 4KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Ethernet Interface | |
| Ethernet Port | 2 x Auto-sensing 10/100 Mbps Ethernet port |
| Protection | Surge 2KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Wireless Interface | |
| Wireless Module Slot | 1 x miniPCle socket for Cellular module or Wi-Fi module |
| SIM Format | 1x Micro SIM (12mm*15mm) |
| Antenna Connector | 1x SMA Female connector for Cellular or Wi-Fi antenna |
| Cellular Band Options |
NA: Other options please contact Elastel representative. |
| Wi-Fi Band Options | 2.4～2.4835GHz or 5.15～5.85GHz IEEE802.11a/b/g/n/ac |
| USB Host | |
| USB 2.0 | 1 x USB 2.0, support peripheral devices (like USB Wi-Fi adaptor) |
| Power output | 5V@500mA (switch on/off programmable) |
| Protection | Output Over Load protection ESD ±8kV IEC61000-4-2 Air Discharge ESD ±6kV Human Body Model |
| Other Interface | |
| Console Port | 1 x UART type-C connector |
| Button | 1x Button for Reset and Reboot |
| Power Parameters | |
| Power Input | 9 ~ 48 VDC, 12 ~ 30 VAC, recommended DC 12V/1.5A |
| Power Consumption | Average: 6 W Peak: 10 W |
| Protection | Overvoltage & polarity reverse protection Surge 4KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Indicators | |
| LED Indicator | Power x 1, System (programmable) x1, Cellular WAN x1, ETH x1, COM<x> trans x 8 (TX + RX) |
| Cellular LED status | Searching network: Slow flashing (200ms ON/1800ms OFF) Idle Status: Slow flashing (1800ms ON/200ms OFF) Transmission: Fast flashing (125ms ON/125ms OFF) |
| Buzzer | Built-in buzzer x 1, for warning alarm (programmable) |
| Reliability | |
| RTC | Built-in RTC inside with Backup CR2032 button battery |
| Watchdog | Built-in WDT inside for auto recovery |
| Physical Characteristics | |
| Dimension | 128.8mm×117mm×28mm (L×W×H) |
| Housing | IP30 Metal |
| Installation | DIN-rail mounting Wall mounting |
| Weight | 470 g (1.04 lb) |
| Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Certifications | |
| CE | EN55032/35 IEC61000-4-2/3/4/5/6 IEC 62368-1 IEC 62311 |
| FCC | FCC PART 15B ANS1C63.4:2014 |
| RoHS | IEC62321-3/4/5/6/7/8 |
| Software Features | |
| Pre-installed OS | Optimized Ubuntu 20.04 |
| OT-to-IT Integration | Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols, MQTT, Sparkplug B… data collect and conversion Powered by ElastPro |
| Secondary Development | Docker, Node-Red, Python, C, C++, C#, Go, Java, JavaScript |
| Package Contents | |
| Device | 1 x EG324 device with Terminal Block preinstalled |
| Antenna | Mag-mount Antenna (SMA Male, 1 meter, 12dBi). Only for cellular or Wi-Fi version. |
| Installation Kit | 1 x DIN-rail kit |
| Warranty Period | 1 year |
